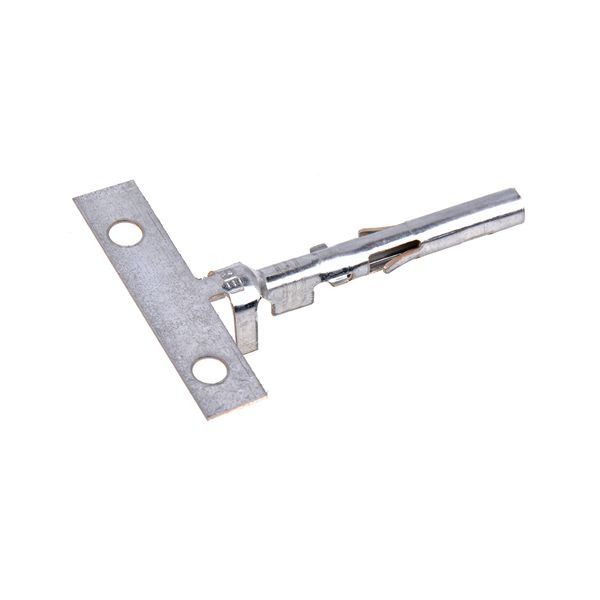

Delphi Weather-Pack Sealed Crimp Receptacle Terminal 15344717 (1.5 ~ 2.0 mm²)

Delphi Weather-Pack Sealed Crimp Terminals for Automotive Connector Assemblies

Get A Quote

Description

Product Details

A range of sealed male pin and female sleeve crimp terminals for use with the Weather-Pack range of sealed automotive connectors. These Weather-pack crimp terminals are made from tin brass with a tin plating.

Model 12124580 (female) and 12124582 (male) are for use with a cable range of 2.0 to 1.0 mm².

Model 12089188 (female) and 12089040 (male) are for use with a cable range of 0.80 to 0.50 mm².

Model 12020801 (female) and 12089307 (male) are for use with a cable range of 0.22 to 0.35 mm².

Model 15344718 (female) and 15344720 (male) are for use with a cable range of 0.50 to 1.00mm².

Model 15344717 (female) and 15344719 (male) are for use with a cable range of 1.50 to 2.00mm².

Model 12124581 (female) and 12124587 (male) are for use with a cable range of 2.50 to 3.00mm².

Specifications

SeriesWeather-Pack
Part No.15344717
GenderFemale
Applicable wire1.5 ~ 2.0 mm²
