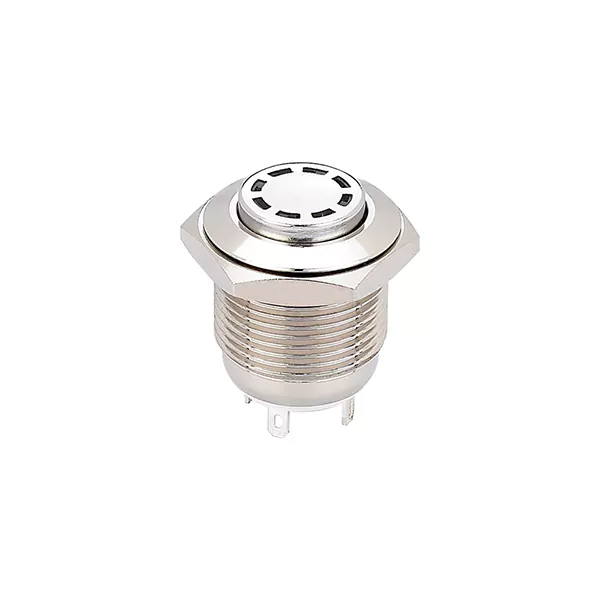

Illuminated Metal Push Button Switch I16C-F10P Φ16

Hegxing supplies various of metal push button switch, include metal, illumination, touch, connector and high current series, which is wildly apply to machine, equipment, vehicle, etc.

The metal push button switches have advantages of economy, durability, easy mounting.

Get A Quote



Mounting diameterΦ 16 mm
Head typeFlat round type
Switch combination1NO
Operating typeMomentary or latching type
Connection typePin type
Suitable panel thickness1 ~ 15 mm
Switch typeSlow moving double contact
Switch ratingUi: AC 250 V / Ith: 5 A
Contact resistance≤ 50 mΩ
Insulation resistance≥ 1000 mΩ
Insulation strength2000 VAC
Temperature range-20 ~ 55 ℃
Mechancial life≥ 1,000,000 cycles
Electrical life≥ 200,000 cycles
Screw torque5 ~ 14 N.m
Operating pressure≤ 4 N
Operating limits2 mm
Case & Button MaterialStainless steel / Nickel plated barss / Aluminum alloy oxide
Base MaterialPlastics
Contact MaterialSilver alloy
Protection gradeIP65, IK08

Light Parameter

Light typeLED light (not positive & negative)
Light voltageDC 6V / 12V / 24V / 36V / 48V
AC 110V / 220V
Customized available
Luminescence colorRed / Green / Yellow / Orange / Blue / White
Current rating≤ 15 mA
Buck modeBuilt-in resistance buck
Resistance Buck
Reference life40,000 hours

Model Explanation

M: Metal series
I: Illumination series
T: Touch series
L: Large current series
C: Connector series
Mounting diameter
Φ7 / Φ8 / Φ10 / Φ12 / Φ16 / Φ19 / Φ22 / Φ25 / Φ30
Style Code
Head type
F: Flat round type
H: High flat round type
B: Ball type
R: Rotation type
K: Key type
Switch combination
10: 1NO
01: 1NC
11: 1NO + 1NC
22: 2NO + 2NC
Operation type
M: Momentary type
L: Latching type
Connection type
P: Pin type
T: Terminal type
Illumination type
S: Single point
A: Annular
M: Multipoint
SA: Single point + Annular
Illumination color
R: Red / G: Green / Y: Yellow / O: Orange / B: Blue / W: White
Case material
S: Stainless steel
B: Nickel plated brass
A: Aluminum alloy oxide
P: Plastics
