• Intermatable with industry standard connectors
• Single-Pole Arrangement
• Machined Contact Size #4 (Wire Size 6AWG)
• Circular, Thermoplastic Housing
• In-line (Wire-to-Wire) or Flange Mount Capability
• Integral Latch Prevents Inadvertent Disconnect

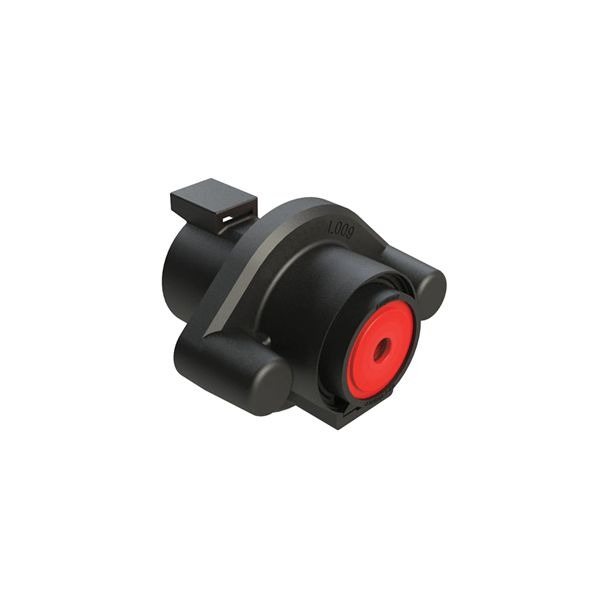

Amphenol ATHD Automotive Connector ATHD04-1-4P-L009 (1 Pin, Male)
Description
Product Details

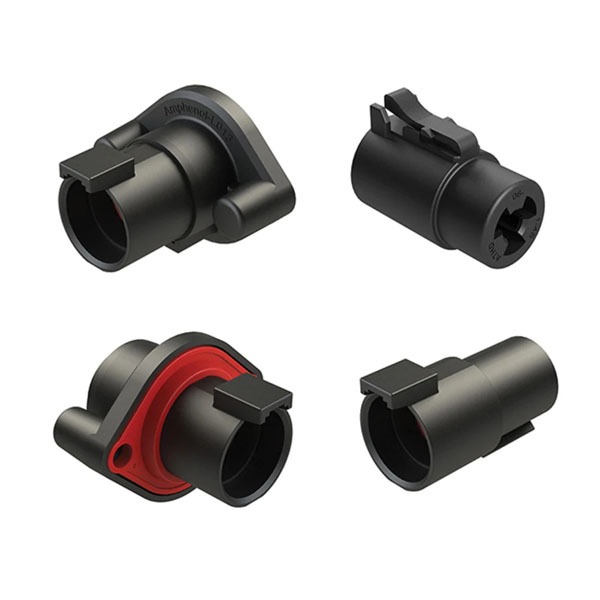

Our ATHD Series™ Single-Pole Power Connectors provide an environmentally sealed connection system and viable solution to field splices and terminals in harsh environments. Safety features include an integral latch to prevent inadvertent disconnect and an audible click, tactile feel provide circuit confirmation. Precision machined contact technology maximizes performance and durability while delivering 100A of power. The rugged circular housings can be used as an in-line or easy to install sealed flange mount connection system for heavy-duty applications.
Specifications
| Type | Automotive Connector |
| Series | ATHD |
| Part Number | ATHD04-1-4P-L009 |
| Number of Contact | 1 |
| Gender | Male |
| Current Rating | 100 A |
| Mounting Type | Flange Mount |
| Colour | Black |
| Width | 57.3 mm |
| Height | 43.3 mm |
| Depth | 52.5 mm |
| Housing Material | Thermoplastic |
| IP Rating | IP67, IP69K |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
