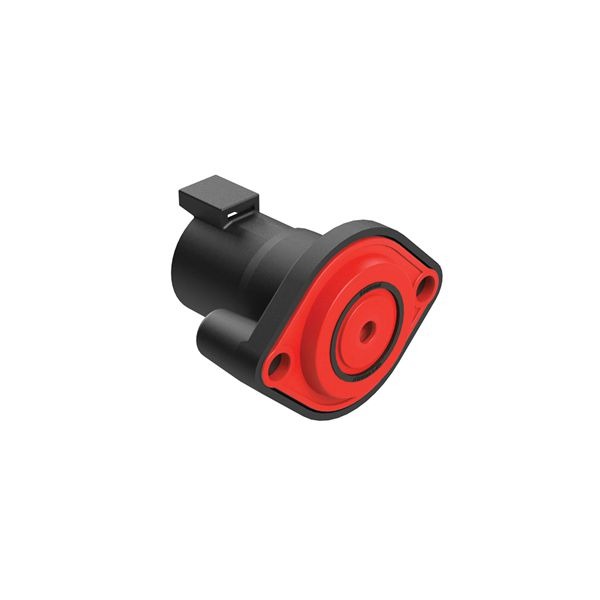

Amphenol ATHD Automotive Connector ATHD04-1-4P-L013 (1 Pin, Male)

• Intermatable with industry standard connectors
• Single-Pole Arrangement
• Machined Contact Size #4 (Wire Size 6AWG)
• Circular, Thermoplastic Housing
• In-line (Wire-to-Wire) or Flange Mount Capability
• Integral Latch Prevents Inadvertent Disconnect

Description

Our ATHD Series™ Single-Pole Power Connectors provide an environmentally sealed connection system and viable solution to field splices and terminals in harsh environments. Safety features include an integral latch to prevent inadvertent disconnect and an audible click, tactile feel provide circuit confirmation. Precision machined contact technology maximizes performance and durability while delivering 100A of power. The rugged circular housings can be used as an in-line or easy to install sealed flange mount connection system for heavy-duty applications.

Specifications

ItemPlug housing
SeriesATHD
ModelATHD04-1-4P-L013
Poles1 P
GenderMale
Mounting typeFlange mount
Width57.3 mm
Height43.3 mm
Depth52.5 mm
IP ratingIP67, IP69K

Materials

Housing PA
Terminal Tin plated phosphor bronze
