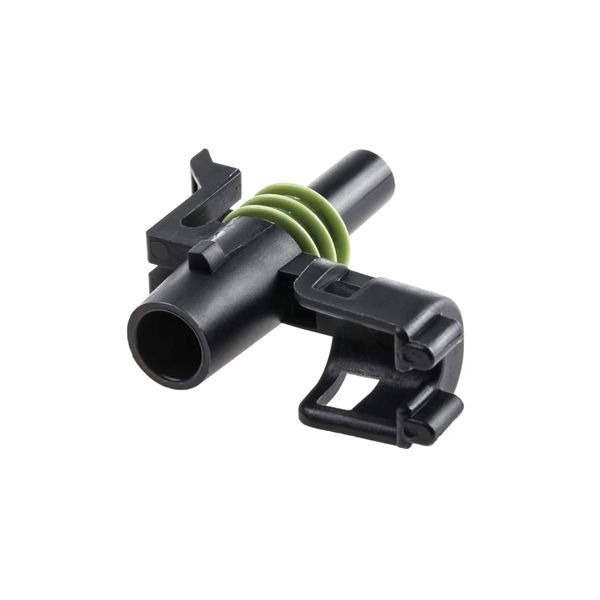

Delphi Weather-Pack Automotive Connector 12015791 (1 Pin, Female, Crimp Termination)

Delphi Weather-Pack Sealed Female Automotive Connector Assemblies.

Description

Weather-Pack sealed female automotive connector assemblies with triple ribbed silicone connector and cavity seals designed to withstand extreme temperatures, chemicals and fluids. The terminals of these Weather-Pack automotive connectors are tin plated and have special core wings that allow crimp only connections so solder is not needed, the dual tangs on the terminals help prevent backing out. These Weather-Pack automotive connectors have positive locking indexing to prevent mismating.

Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicle and marine applications.

Specifications

ItemReceptacle housing
SeriesWeather-Pack
Model12015791
Poles1 P
GenderFemale
Rated current20 A
Mounting typeCable Mount
Width13.6 mm
Height20.8 mm
Depth40.5 mm

Materials

Housing PA
Terminal Tin plated phosphor bronze
