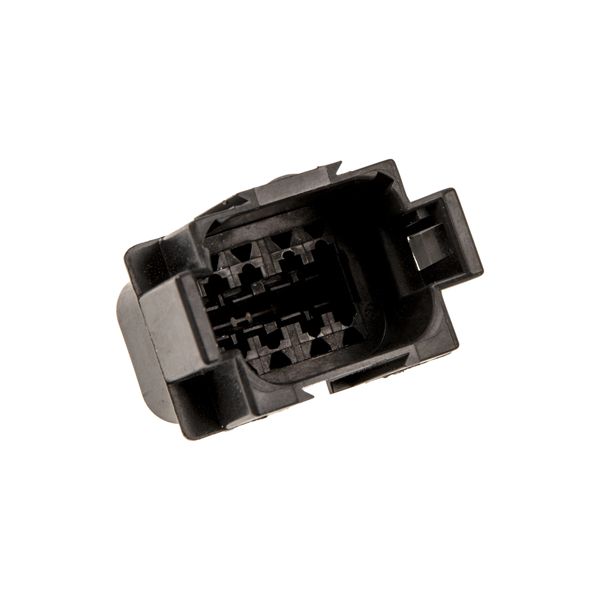

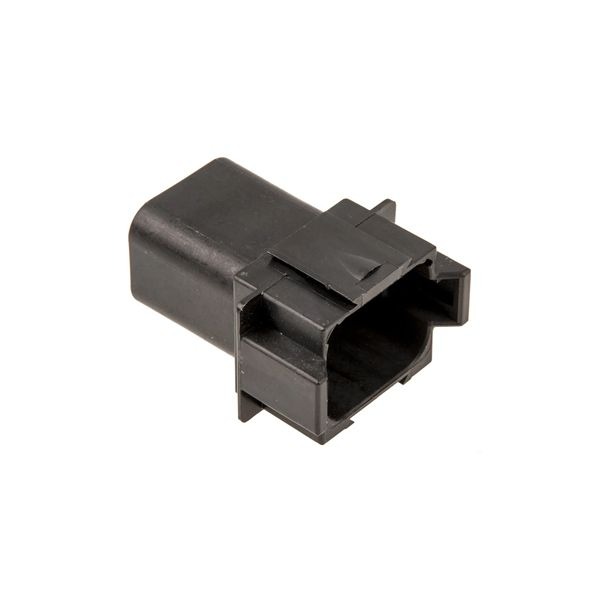

Deutsch DT Automotive Connector DT048PA-CE02 (8 Way, Socket, Crimp Termination)

• IP68
• Wire-to-Wire Connection System
• Operating Temperature Range of -55 to +125
• 8-way female connector
• Black plastic housing
• Thin wall
• Perfect for tough environments

Product Details

DT Receptacles

From Deutsch, this DT Series receptacle is designed for cable to cable connections, and when mated is sealed to a high degree of environmental protection. Safe, versatile and reliable, DT receptacle connectors are ideal for automotive applications.

Specifications

ItemReceptacle housing
SeriesDT
ModelDT048PA-CE02
Poles8 P
GenderFemale
Mounting typeCable mount
Termination methodCrimp

Materials

Housing PA
Terminal Tin plated phosphor bronze
