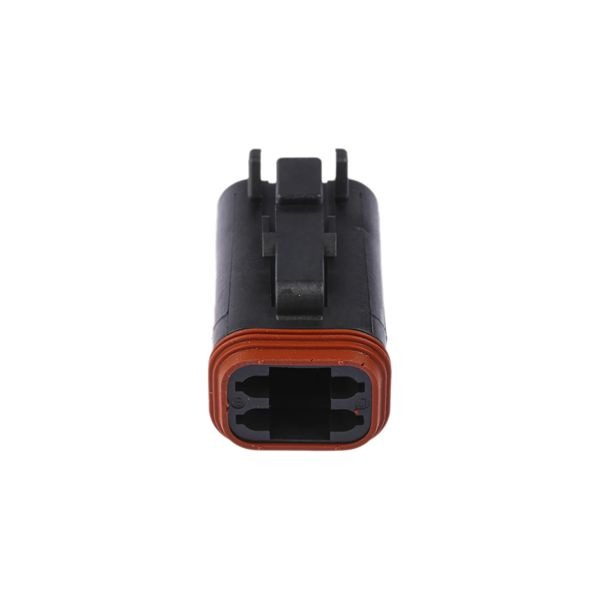

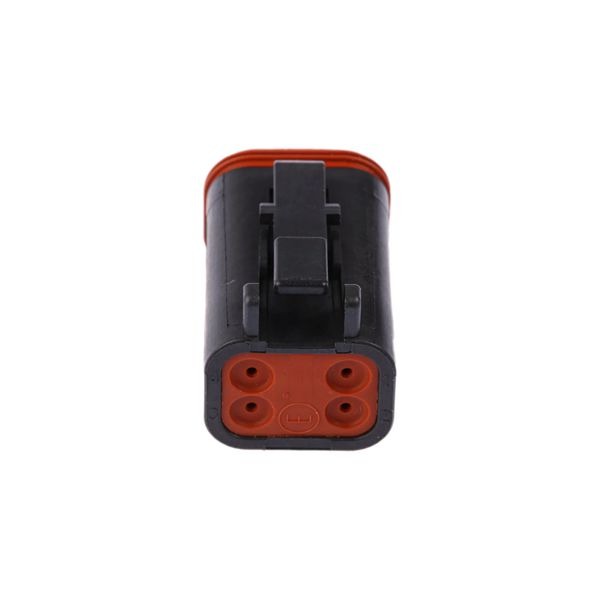

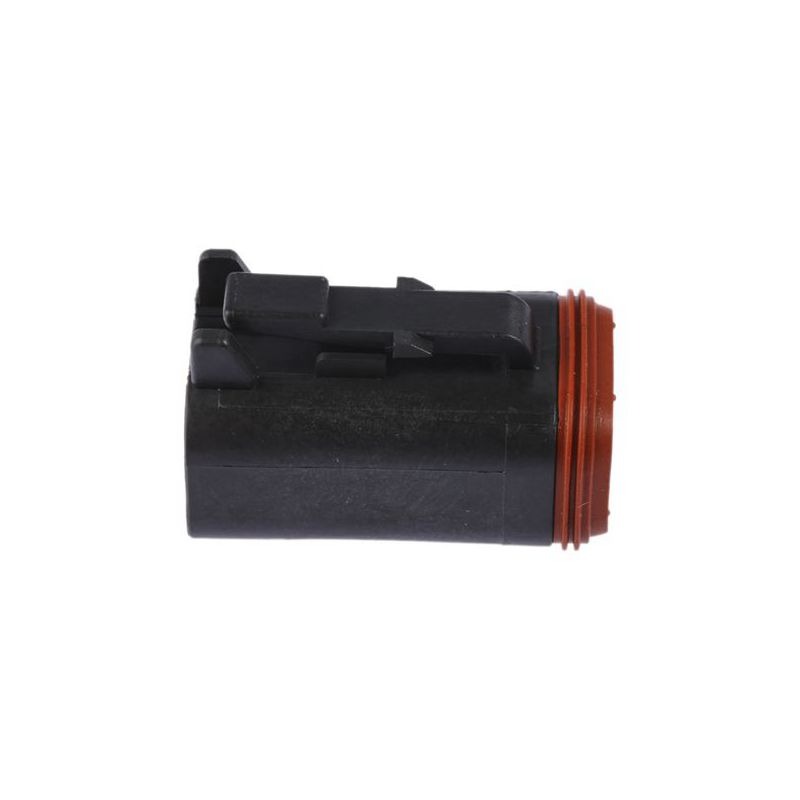

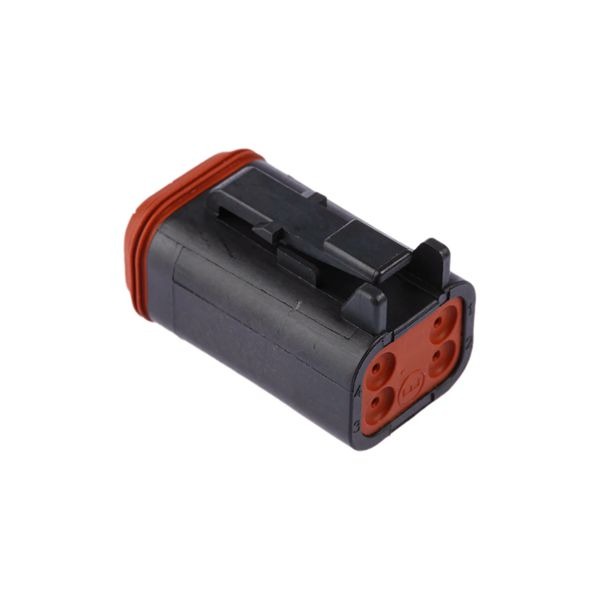

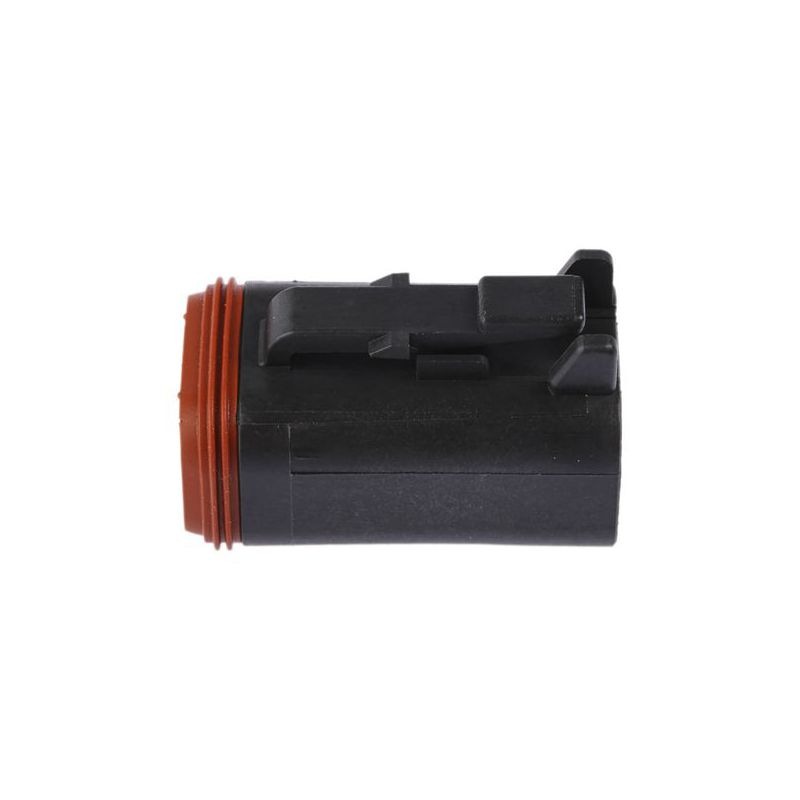

Deutsch DT Automotive Connector DT064S-CE06 (4 Way, Plug, Crimp Termination)

• IP68
• Wire-to-Wire Connection System
• Operating Temperature Range of -55 to +125
• 4-way male connector
• Black plastic housing
• Thin wall
• Perfect for tough environments
• Voltage rating 250 V
• Centerline (Pitch) 5.46mm
• Primary locking feature integrated in the housing

Product Details

DT Plugs

From Deutsch, this DT Series plug is designed for cable to cable connections, and when mated is sealed to a high degree of environmental protection. Safe, versatile and reliable, DT plug connectors are ideal for automotive applications.

The Deutsch DT064S-CE06 is a 4-way automotive connector in a black plastic housing. This high-performance, tough connector is ideal for automotive applications in harsh environments.

This DT064S-CE06 male connector has a thin wall with 1.35 to 3.05mm wire insulation diameter.

Note

Crimp Contacts and Secondary Locks are available separately.

Specifications

ItemPlug housing
SeriesDT
ModelDT064S-CE06
Poles4 P
GenderMale
Mounting typeCable mount
Termination methodCrimp

Materials

Housing PA
Terminal Tin plated phosphor bronze
