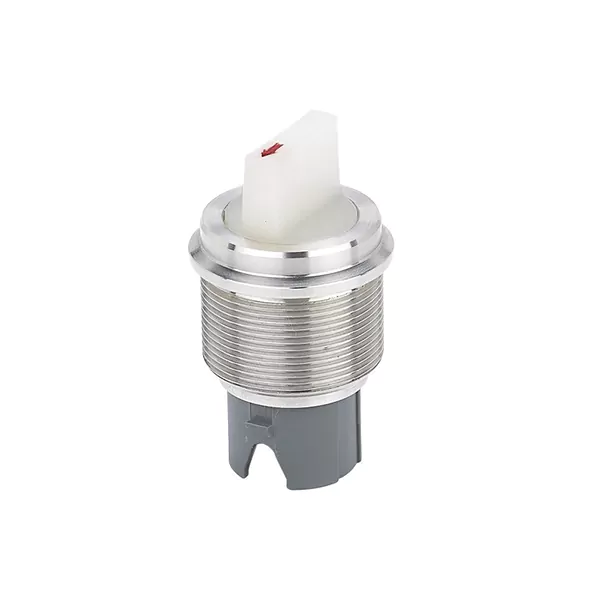

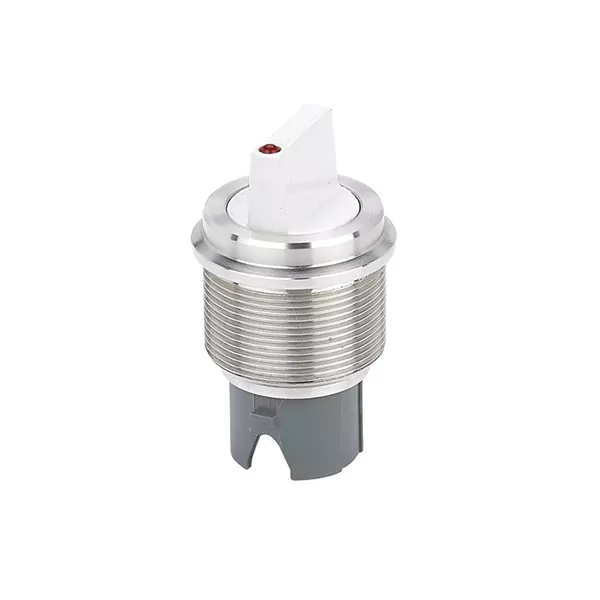

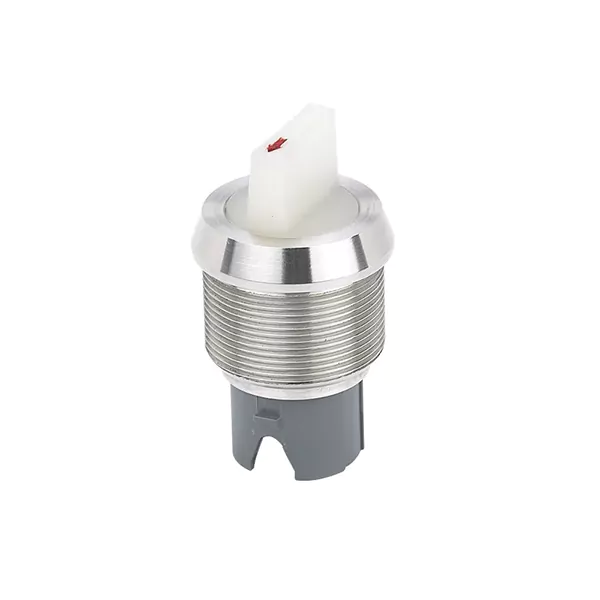

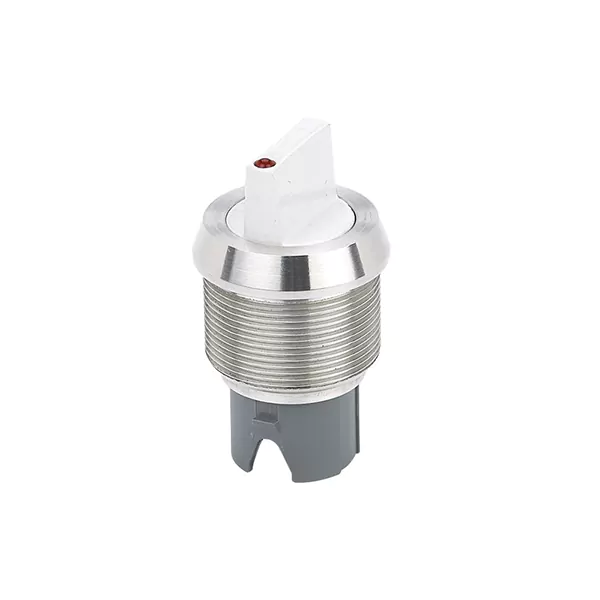

Metal Push Button Switch L25E-R11 Φ25

Hegxing supplies various of metal push button switch, include metal, illumination, touch, connector and high current series, which is wildly apply to machine, equipment, vehicle, etc.

The metal push button switches have advantages of economy, durability, easy mounting.

Description

Specification

Mounting diameter Φ 25 mm
Head type Rotation type
Switch combination 1NO + 1NC
Operating type Momentary or latching type
Connection type Terminal type
Suitable panel thickness 1 ~ 15 mm
Switch type Slow moving double contact
Switch rating Ui: AC 250 V / Ith: 5 A
Contact resistance ≤ 50 mΩ
Insulation resistance ≥ 1000 mΩ
Insulation strength 2000 VAC
Temperature range -20 ~ 55 ℃
Mechancial life ≥ 1,000,000 cycles
Electrical life ≥ 200,000 cycles
Screw torque 5 ~ 14 N.m
Operating pressure ≤ 4 N
Operating limits 2 mm
Case & Button Material Stainless steel / Nickel plated barss / Aluminum alloy oxide
Base Material Plastics
Contact Material Silver alloy
Protection grade IP65, IK08

Light Parameter

Light type LED light (not positive & negative)
Light voltage DC 6V / 12V / 24V / 36V / 48V
AC 110V / 220V
Customized available
Luminescence color Red / Green / Yellow / Orange / Blue / White
Current rating ≤ 15 mA
Buck mode Built-in resistance buck
Resistance Buck
Reference life 40,000 hours
Drawing-L25E-R11

Model Explanation

M 7 A -F 10 M P -S R -S
Series
M: Metal series
I: Illumination series
T: Touch series
L: Large current series
C: Connector series
Mounting diameter
Φ7 / Φ8 / Φ10 / Φ12 / Φ16 / Φ19 / Φ22 / Φ25 / Φ30
Style Code
Head type
F: Flat round type
H: High flat round type
B: Ball type
R: Rotation type
K: Key type
Switch combination
10: 1NO
01: 1NC
11: 1NO + 1NC
22: 2NO + 2NC
Operation type
M: Momentary type
L: Latching type
Connection type
P: Pin type
T: Terminal type
Illumination type
S: Single point
A: Annular
M: Multipoint
SA: Single point + Annular
Illumination color
R: Red / G: Green / Y: Yellow / O: Orange / B: Blue / W: White
Case material
S: Stainless steel
B: Nickel plated brass
A: Aluminum alloy oxide
P: Plastics
