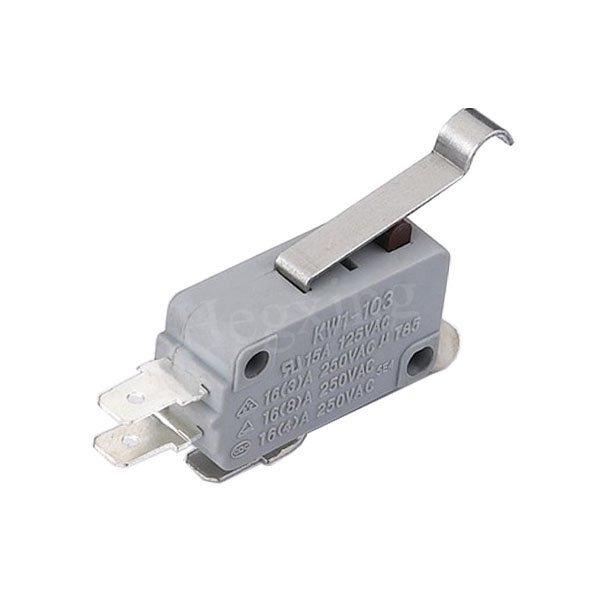

Micro Switch KW1-103

Hegxing supplies various of Micro Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Micro Switches have advantages of economy, durability, easy mounting.

Description

Specifications

Rating: 15A 125VAC / 16(4)A 250VAC / 16(8)A 250VAC
Contact resistance: ≤ 50 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric intensity: ≥ 1500 VAC / 5S
Life: ≥ 10,000 cycles

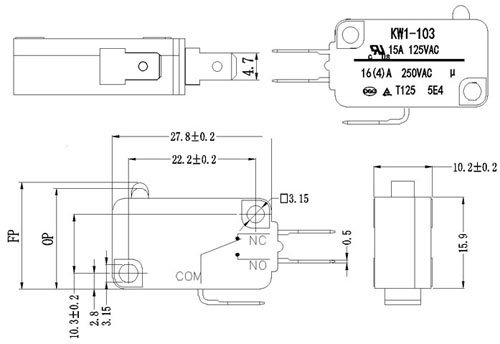

Drawings

Operating Diagrams

Code Title Descriptions
PT Pretravel The displacements of actuator from free position to operating position
OT Overtravel The displacements of actuator from operating position to total travel position
MD Movement differential travel The displacements of actuator from operating position to total travel position
RT Movement differential travel The displacements of actuator from release position to free position
OF Release travel The force of displacements of actuator from release position to free position
TF Total travel force The smallest force of displacements of actuator on total travel position
RF Release force The force must be smallest when the actuator moved back release position from obverse operating position
TTP Total travel position The position where the actuator be stopped
OP Operation position The position where the actuator moved obverse on quick-moving parts
RP Release position The position where the actuator moved reversely on quick-moving parts
FP Free position The position where the actuator lead displacements when its force is not enough

Plunger Diagrams

Circuit Diagrams

Circuit type Bottom common terminal Side common terminal
Convert type
NC type
NO type

Pressing Handle Position

Descriptions Diagrams
The pressing handle loads from the button which is far away to the hole
 The pressing handle loads from the button which is close to the hole

Terminal Diagrams


0.5 x 4.7
0.8 x 4.7 0.8 x 6.3
0.8 x 1.5 0.8 x 1.5

Lever Diagrams

01 OP: 18.1 ± 0.5
02 OP: 18.3 ± 0.5
03 OP: 18.1 ± 2.0
04 OP: 21.8 ± 1.5
05 OP: 23.5 ± 1.0
06 OP: 23.5 ± 1.5
07 OP:
08 OP: 24.5 ± 0.8
09 OP: 16.6 ± 1.5
10 OP: 18.8 ± 1.0
11 OP:
12 OP: 18.5 ± 1.0
13 OP:
14 OP:
15 OP:
16 OP:
17 OP:
18 OP:
19 OP: 25.4 ± 1.0
20 OP: 18.7 ± 0.8
21 OP:
22 OP: 22.0 ± 1.0
23 OP: 10 ± 1.5
