Over Load Switch KOR1

Hegxing supplies various of Over Load Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Over Load Switches have advantages of economy, durability, easy mounting.

Description

Specifications

Rating: 3A / 5A / 7A / 10A / 15A / 20A 250VAC
Contact resistance: ≤ 50 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric intensity: ≥ 1500 VAC / 5S
Life: ≥ 10,000 cycles
Trip time: 40 s (2 Ie)
Circuit diagram:
Terminal diagrams:

Trip Characteristics

Current Trip Time
100% Ie No trip
150% Ie Within 1 hour
200% Ie Within 40 s
300% Ie Within 8 s
500% Ie Within 3 s

Ambient Temperature: 25 ℃

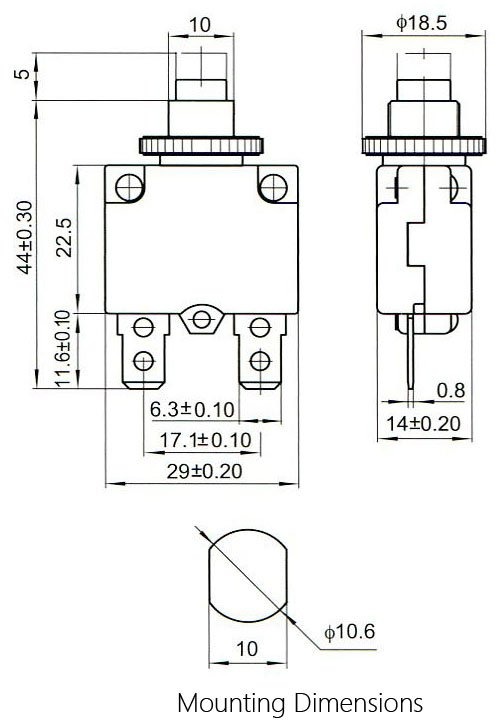

Drawings
