Plastic Push Button Switch PBS-01

Hegxing supplies various of Plastic Push Button Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Plastic Push Button Switches have advantages of economy, durability, easy mounting.

Get A Quote

Description

Specifications

Rating:1.5A 125/250VAC T85
Contact resistance:≤ 50 mΩ
Insulation resistance:≥ 100 MΩ
Dielectric intensity:≥ 1500 VAC / 5S
Life:≥ 10,000 cycles
Operating type:Latch or Momentary
Button type:
Circuit diagram:
Terminal diagrams:

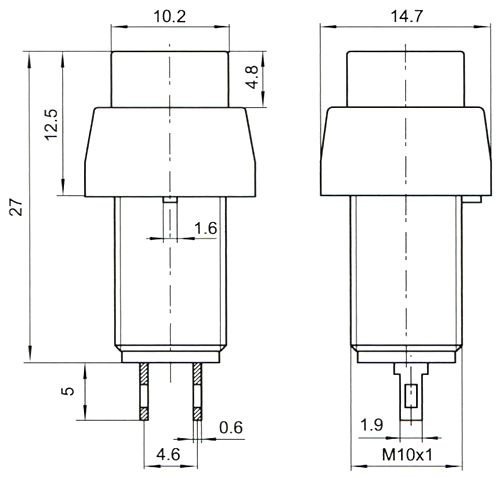

Drawings
