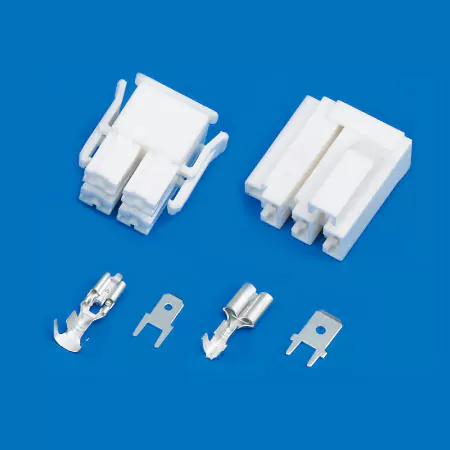

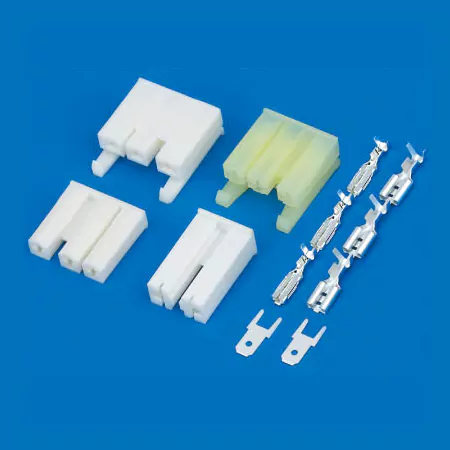

Pressure Welding Bar Connector (4.8 Series) For Washing Machine

Economical 4.8 series connector for washing machine.

Description

Product Profile

Series 4.8 Series Pressure Welding Bar Connector
Category Wire-to-Wire type Pressure Welding Bar Connector
Type Crimp style, Compact type, Disconnectable type

Specification

Current rating 15 A AC/DC
Voltage rating 300 V AC/DC
Temperature range -25 ~ 85 ℃
Contact resistance ≤ 10 mΩ
Insulation resistance ≥ 1000 MΩ
Withstand voltage 1000 V AC/minute
Applicable wire AWG24# ~ 16#

Drawings
