Pressure Welding Bar Connector

Home/Electronic Connector/2.0mm Pitch/Pressure Welding Bar Connector (51005 & 51006) 2.0mm Pitch

Pressure Welding Bar Connector (51005 & 51006) 2.0mm Pitch

  • Economical replacement for Molex 51005 & 51006, similar specification & quality but low price.

Specifications

ItemPressure Welding Bar Connector
SeriesWire-to-Wire Connector
Model51005 & 51006
Poles2 ~ 16 P
Rated voltage125 V AC/DC
Rated current2.0 A
Applicable wireAWG #28 ~ #24
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

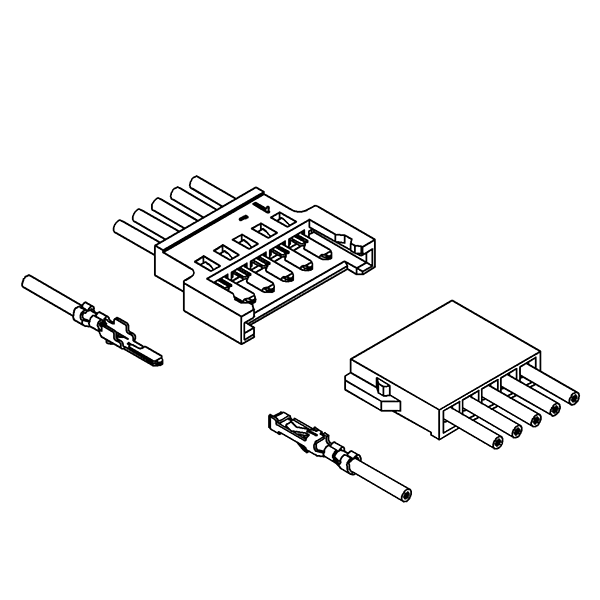

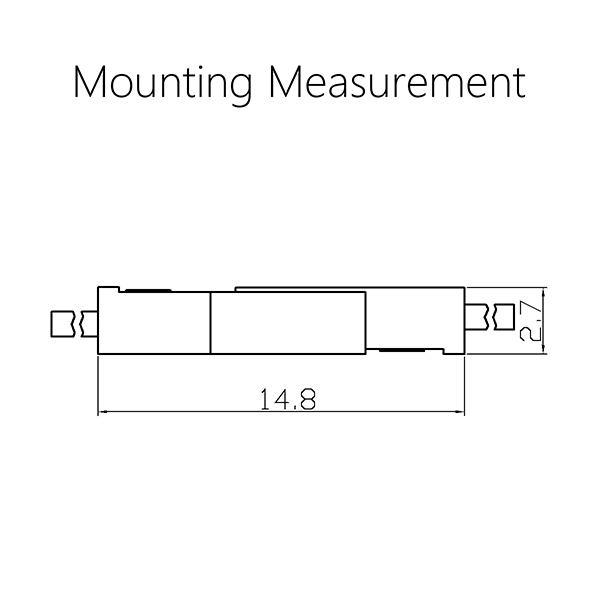

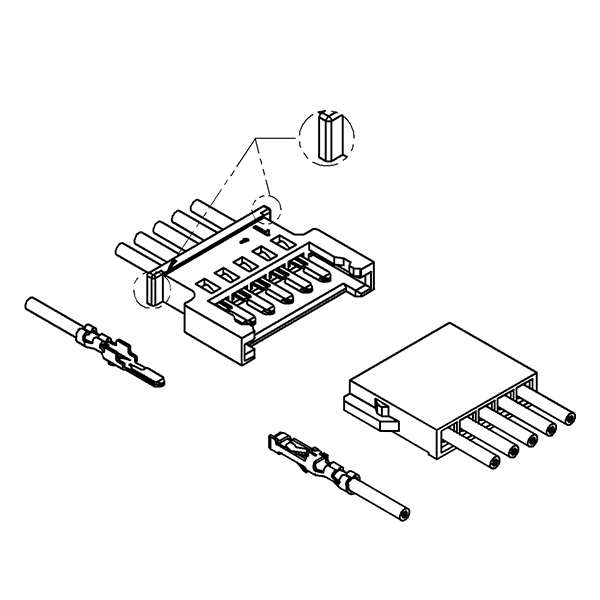

Drawings

51005 & 51006
