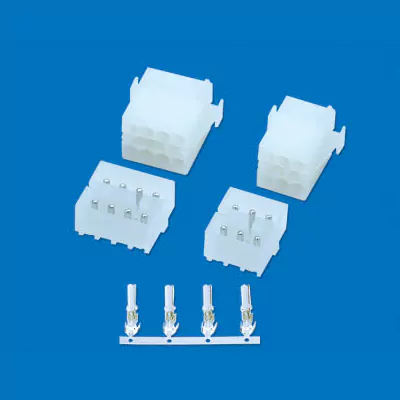

Pressure Welding Bar Connector (8981 & Senior P & TJC10) 5.08mm Pitch

Economical alternative for Molex 8981 & Senior P & TJC10 Connector, similar specification & quality but low price.

Description

Product Profile

Series 8981 & Senior P & TJC10 Pressure Welding Bar Connector
Category Wire-to-Board / Wire-to-Wire type Pressure Welding Bar Connector
Type Crimp style, Compact type, Disconnectable type
PC board mounting direction Top entry, Side entry

Specification

Pitch 5.08 mm
Poles 2, 3, 4, 6, 8 P
Current rating 8 A AC/DC
Voltage rating 300 V AC/DC
Temperature range -25 ~ 85 ℃
Contact resistance ≤ 10 mΩ
Insulation resistance ≥ 1000 MΩ
Withstand voltage 1000 V AC/minute
Applicable wire AWG24# ~ 16#
Applicable PC board thickness 1.6 mm
