Pressure Welding Bar Connector

Home/Electronic Connector/1.5mm Pitch/Pressure Welding Bar Connector (SZN) 1.5mm Pitch

Pressure Welding Bar Connector (SZN) 1.5mm Pitch

  • Economical replacement for JST SZN Connector, similar specification & quality but low price.
  • This low-profile, board-in connector, with a mounting height of only 4.25mm and a thickness of 2.4mm, is soldered directly onto PC boards.

Specifications

ItemPressure Welding Bar Connector
SeriesBoard-in Connector
ModelSZN
Poles2 ~ 20 P
Rated voltage50 V AC/DC
Rated current0.7 A
Applicable wireAWG #32 ~ #26
Applicable PC board thickness1.2 ~ 1.6 mm
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

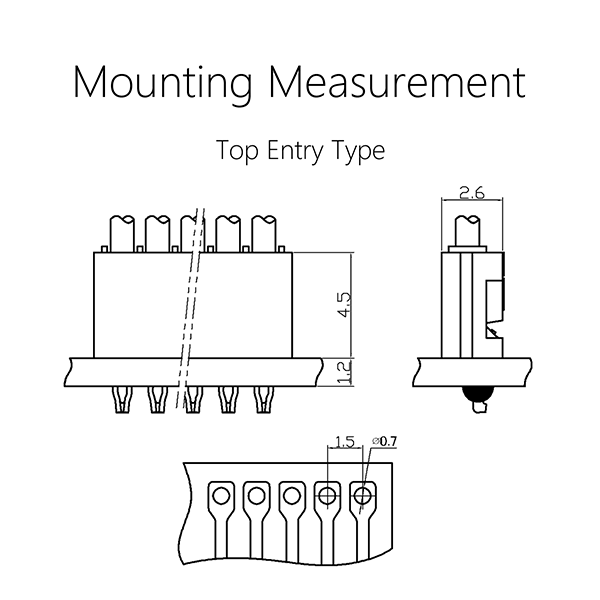

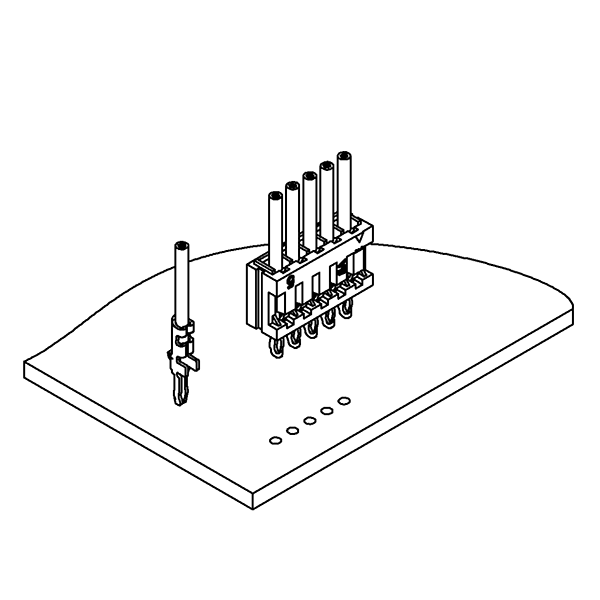

Drawings

SZN
