- Economical replacement for Molex Micro-Fit 3.0 (MX3.0) Connector, similar specification & quality but low price.

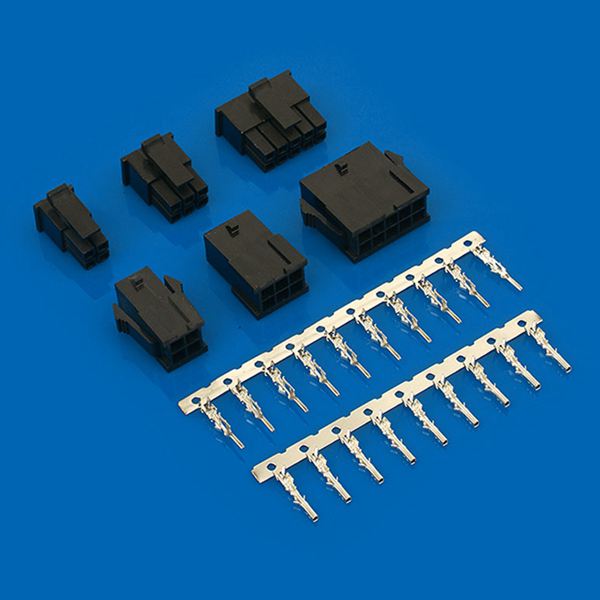

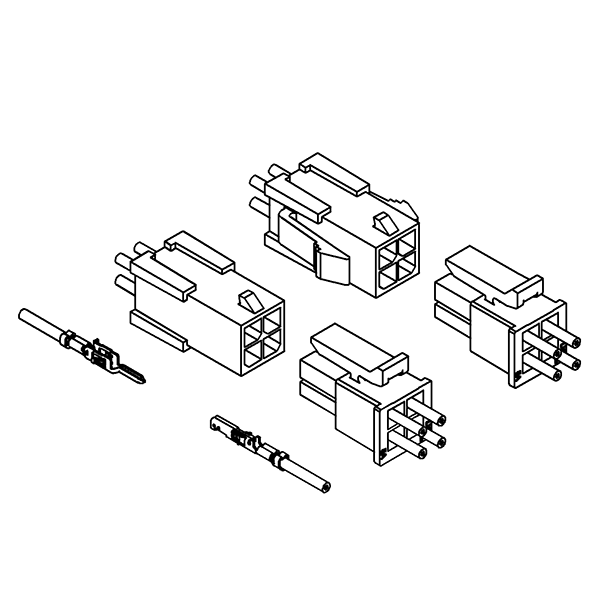

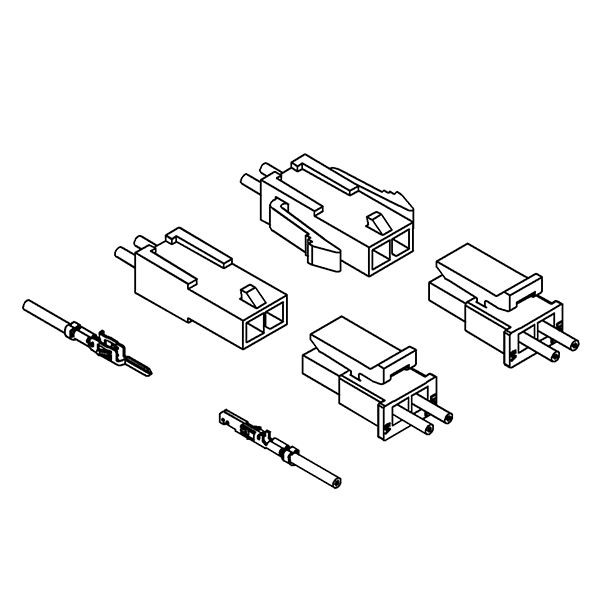

Pressure Welding Bar Connector WW3001~WW3004 (MX3.0) 3.0mm Pitch
Category: 3.0mm Pitch
Tags: Molex Connector, Pressure Welding Bar Connector, Wire to Wire Connector
Description
Product Profile
Series: | WW3001~WW3004 (MX3.0) Pressure Welding Bar Connector |
Category: | Wire-to-Wire type Pressure Welding Bar Connector |
Type: | Crimp style |
Model Explanation
WB | 1001 | – | H | 02 |
① | ② | ③ | ④ | |
① | WB: Wire-to-Board Connector WW: Wire-to-Wire Connector BI: Board-in Connector |
|||
② | Series number | |||
③ | H: Housing T: Terminal PT: Top Entry type Pressure Welding Bar Wafer PS: Side Entry type Pressure Welding Bar Wafer ST: Top Entry type SMT Wafer SS: Side Entry type SMT Wafer |
|||
④ | Poles |

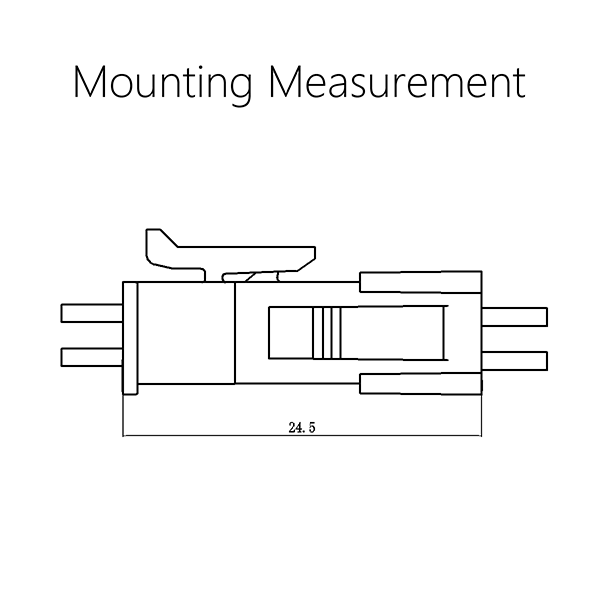

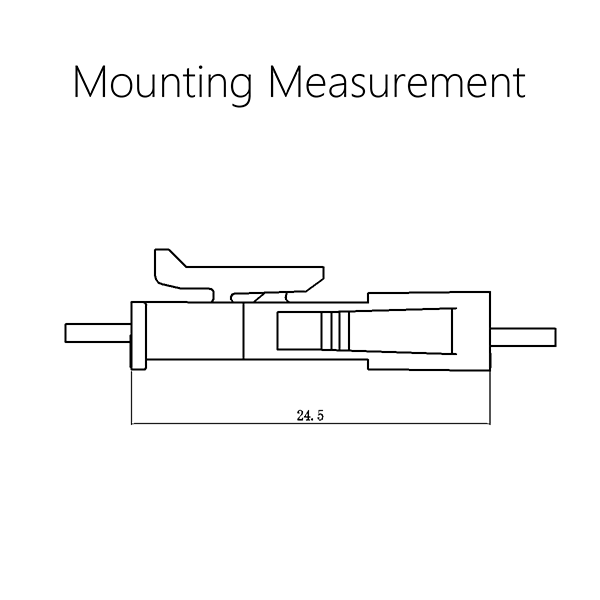

Specification
Pitch: | 3.0 mm |
Poles: | 2 ~ 12 / 4 ~ 24 P |
Current rating: | 5.0 A AC/DC |
Voltage rating: | 250 V AC/DC |
Temperature range: | -25 ~ 85 ℃ |
Contact resistance: | ≤ 15 mΩ |
Insulation resistance: | ≥ 1000 MΩ |
Withstand voltage: | 1500 V AC/minute |
Applicable wire: | AWG #30 ~ #20 |
Applicable PC board thickness: | 1.6 mm |
