- Economical replacement for Molex Mini-Fit 4.2 (5557 & 5566) Connector, similar specification & quality but low price.

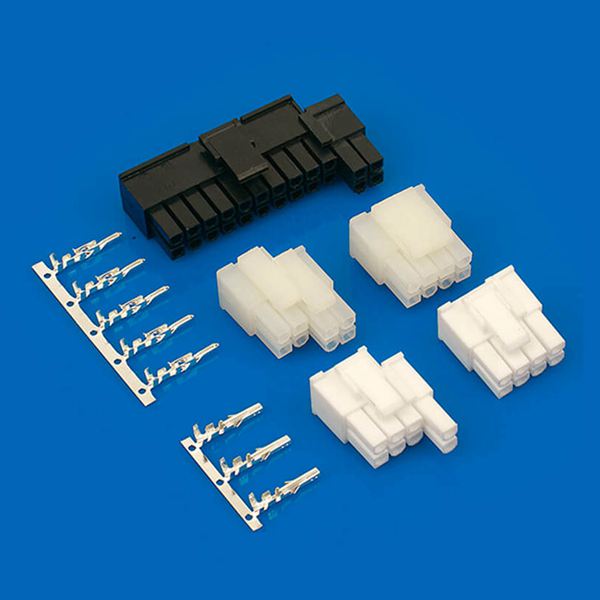

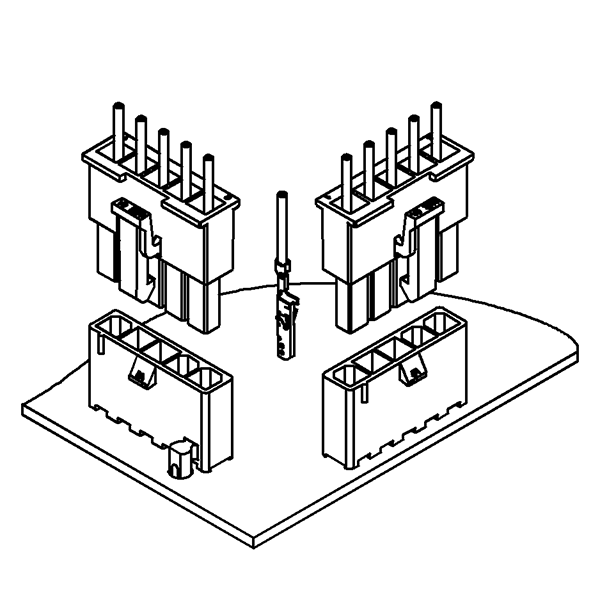

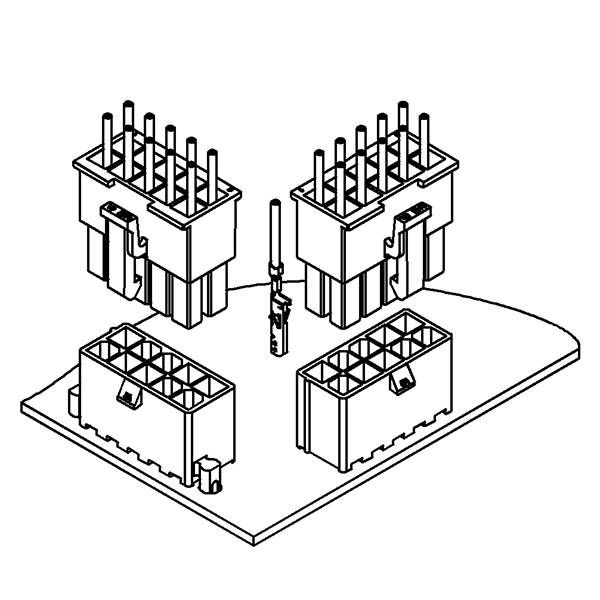

Pressure Welding Bar Connector WW4201 & WB4202 (5557 & 5566) 4.2mm Pitch
Category: 4.2mm Pitch
Tags: Molex Connector, Pressure Welding Bar Connector, Wire to Wire Connector
Description
Product Profile
Series: | WW4201 & WB4202 (5557 & 5566) Pressure Welding Bar Connector |
Category: | Wire-to-Wire type Pressure Welding Bar Connector |
Type: | Crimp style |
Model Explanation
WB | 1001 | – | H | 02 |
① | ② | ③ | ④ | |
① | WB: Wire-to-Board Connector WW: Wire-to-Wire Connector BI: Board-in Connector |
|||
② | Series number | |||
③ | H: Housing T: Terminal PT: Top Entry type Pressure Welding Bar Wafer PS: Side Entry type Pressure Welding Bar Wafer ST: Top Entry type SMT Wafer SS: Side Entry type SMT Wafer |
|||
④ | Poles |
Specification

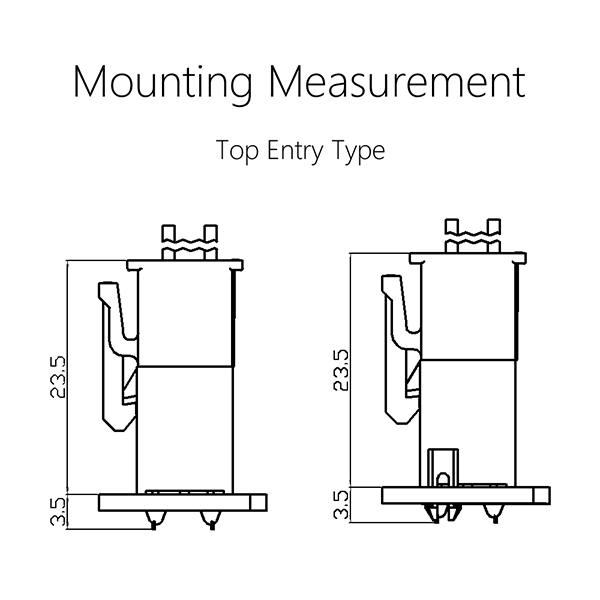

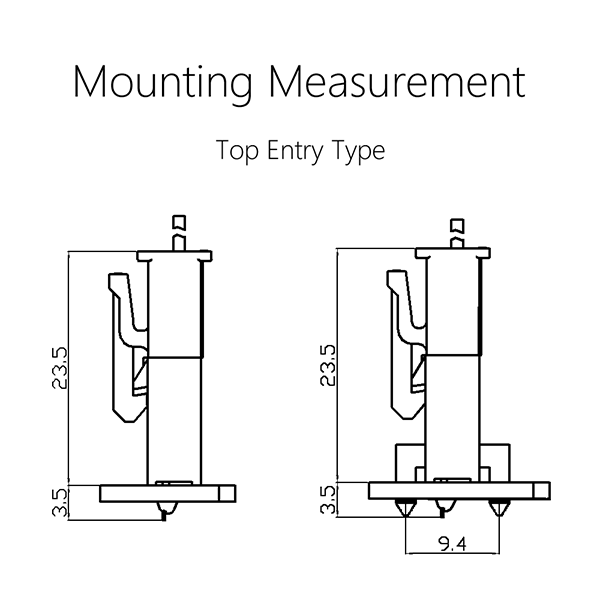

Pitch: | 4.2 mm |
Poles: | 2 ~ 6 / 2~ 24 P |
Current rating: | 9.0 A AC/DC |
Voltage rating: | 300 V AC/DC |
Temperature range: | -25 ~ 85 ℃ |
Contact resistance: | ≤ 15 mΩ |
Insulation resistance: | ≥ 1000 MΩ |
Withstand voltage: | 1500 V AC/minute |
Applicable wire: | AWG #28 ~ #16 |
Applicable PC board thickness: | 1.6 ~ 2.0 mm |
