Rocker Switch KCD1-B7

Hegxing supplies various of Rocker Switch, which is wildly apply to home appliance, machine, equipment, vehicle, etc.

Our Rocker Switches have advantages of economy, durability, easy mounting.

Get A Quote

Description

Specifications

Rating:6A 250VAC / 10A 125VAC T125
16(4)A 125 / 250VAC T125
Contact resistance:≤ 50 mΩ
Insulation resistance:≥ 100 MΩ
Dielectric intensity:≥ 1500 VAC / 5S
Life:≥ 10,000 cycles

Diagrams

Series No.Circuit diagramsTerminal diagrams
KCD1-B7-101
KCD1-B7-102
KCD1-B7-103
KCD1-B7-101/N

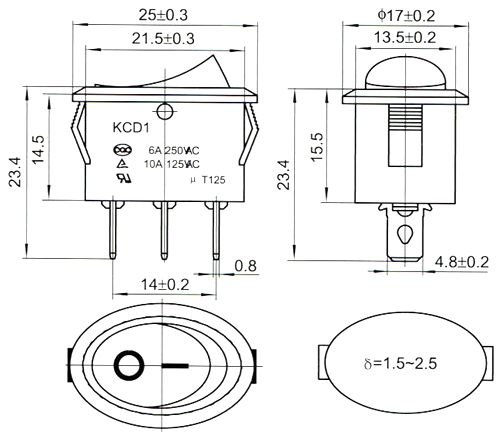

Drawings
