Rocker Switch KCD3-00

Hegxing supplies various of Rocker Switch, which is wildly apply to home appliance, machine, equipment, vehicle, etc.

Our Rocker Switches have advantages of economy, durability, easy mounting.

Category: Tag:

Description

Specifications

Rating: 15A / 20A 125VAC T125
16(8)A 125 / 250VAC T125
Contact resistance: ≤ 50 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric intensity: ≥ 1500 VAC / 5S
Life: ≥ 10,000 cycles

Diagrams

Series No. Circuit diagrams Terminal diagrams
KCD3-00-101
KCD3-00-102
KCD3-00-103
KCD3-00-101/N

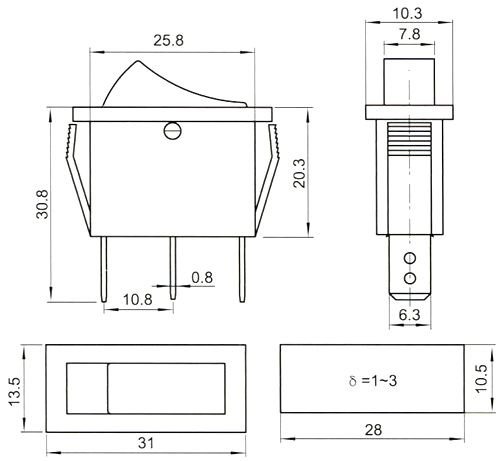

Drawings
