Rocker Switch KCD3-20 with Round Mushroom Head

Hegxing supplies various of Rocker Switch, which is wildly apply to home appliance, machine, equipment, vehicle, etc.

Our Rocker Switches have advantages of economy, durability, easy mounting.

Get A Quote

Description

Specifications

Rating:15A / 20A 125VAC T125
16(8)A 125 / 250VAC T125
Contact resistance:≤ 50 mΩ
Insulation resistance:≥ 100 MΩ
Dielectric intensity:≥ 1500 VAC / 5S
Life:≥ 10,000 cycles

Diagrams

Series No.Circuit diagramsTerminal diagrams
KCD3-201/N (MY)

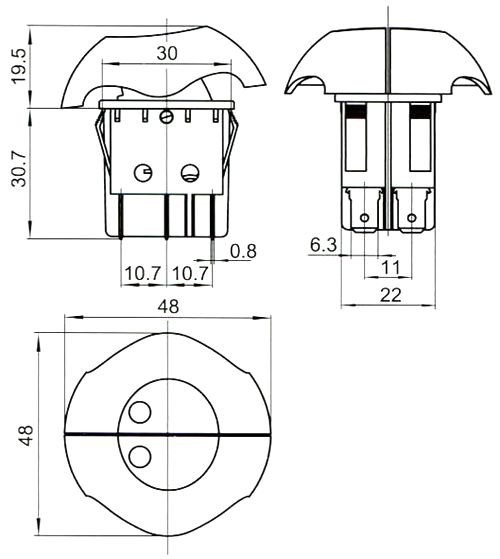

Drawings
