Rotary Switch YH-A06

Hegxing supplies various of Rotary Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Rotary Switches have advantages of economy, durability, easy mounting.

Category: Tag:

Description

Specifications

Rating: 400A 60VDC
Contact resistance: ≤ 50 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric intensity: ≥ 1,500 VAC / 5 S
Life: 10,000 cycles
Angle of gear: 30º / 90º
Circuit diagram:
Position of initial gear (α):



Dimensions of pole:
Terminal diagrams:
Bolt diagrams:

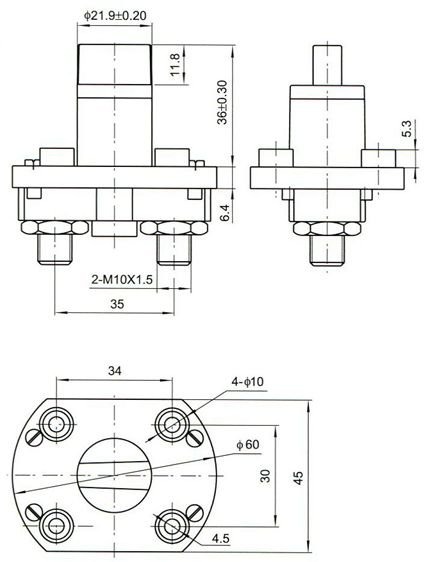

Drawings

Diagram of Switching On & Off

Input Output Gear position
A 1 ON
2 ON
B 3
4
Input Output Gear position
A 1 ON ON
2 ON
B 3
4 ON
Input Output Gear position
A 1 ON
2 ON ON
B 3 ON ON ON
4 ON ON ON
Input Output Gear position
A 1 ON
2 ON
B 3 ON
Input Output Gear position
A 1 ON ON
2 ON ON
B 3
4
Input Output Gear position
A 1 ON ON
2 ON ON ON ON
B 3
4 ON ON
