TE AMP Superseal Crimp Plug Terminal 183024-1 (AWG17~15)

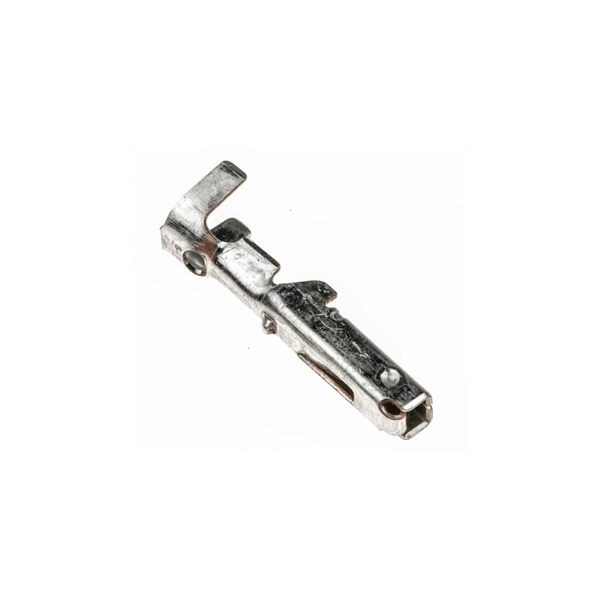

TE Superseal Series 1.5 Plug and Receptacle Terminals.

Description

Product Details

This range of plug and receptacle style crimp terminals are for use with the Superseal series of automotive connectors. The Superseal crimp terminal utilise a 2-step positive lock when the contact is inserted into housing, and can maintain an IP67 sealing if used in conjunction with appropriate wire seals

Developed to meet the constantly increasing needs and requirements for safety and reliability in the electrical connection field, these connectors fulfill all the requirements prescribed by the various automotive and industrial standards. Typical applications include various automotive sensor devices, oil pressure senders, water temperature monitoring or any application requiring waterproof protection to IP67.

Specifications

Type Plug Terminal
Series AMP Superseal 1.5
Part Number 183024-1
For Use With AMP Superseal 1.5 Connector Housing
Gender Male
Termination Method Crimp
Contact Material Brass
Contact Material Tin
Minimum Wire Size AWG17 / 0.75 mm²
Maximum Wire Size AWG15 / 1.5 mm²
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +125 °C
