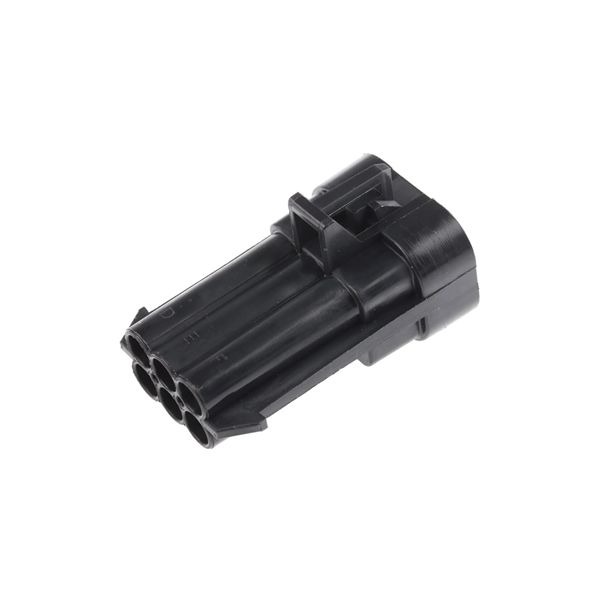

Delphi Metri-Pack 150 Automotive Connector 12124107 (6 Pin, Male, Crimp Termination)

Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

Get A Quote

Description

Product Details

Metri-Pack 150 sealed male automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed male automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.

Specifications

SeriesMetri-Pack 150
Part Number12124107
Number of Contact6
GenderMale
Current Rating14 A
Mounting TypeCable Mount
Termination MethodCrimp
ColourBlack
Width29 mm
Depth45.5 mm
Height28.1 mm
Housing MaterialPA
Minimum Operating Temperature-40 °C
Maximum Operating Temperature+125 °C
