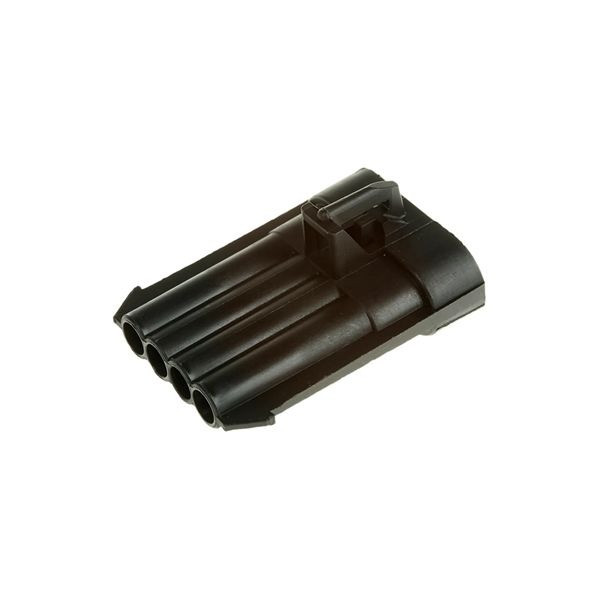

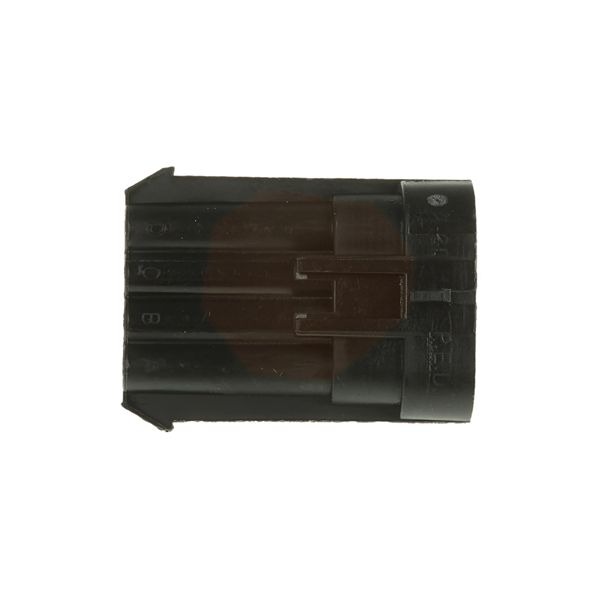

Delphi Metri-Pack 150 Automotive Connector 12162102 (4 Pin, Male, Crimp Termination)

Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

Description

Product Details

Metri-Pack 150 sealed male automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed male automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.

Specifications

Series Metri-Pack 150
Part Number 12162102
Number of Contact 4
Gender Male
Current Rating 14 A
Mounting Type Cable Mount
Termination Method Crimp
Colour Black
Width 34.6 mm
Depth 45.5 mm
Height 22.2 mm
Housing Material PA
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +125 °C
