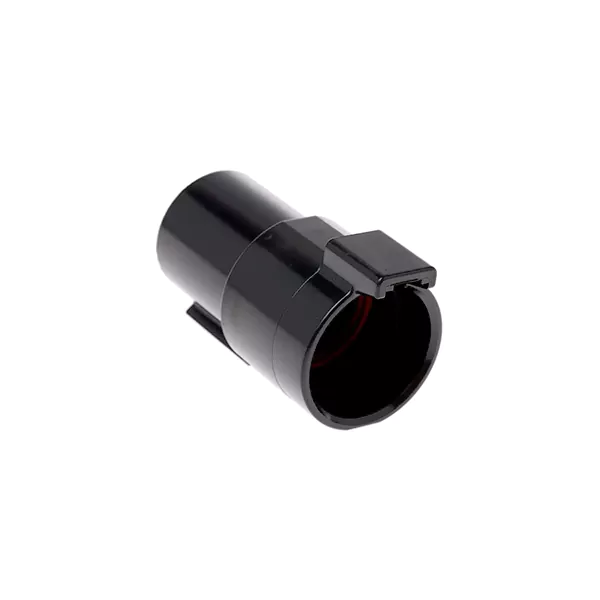

Deutsch DTHD Automotive Connector DTHD04-1-4P (1 Way, Socket, Solder Termination)

• Contacts Purchased Separately
• Silicon rubber seals
• Thermoplastic connector shell
• Operating temp range -55 to +125° C
• Insulation resistance 1000 MΩ
• Current leakage less than 2 mA at 1500Vac

Description

DTHD Series Connectors

Deutsch DTHD Series Connector is suitable for connector applications that require a environmentally sealed single power circuit termination, ideally suited for engine compartments, transmission cables and other harsh environment connector applications. The connectors feature an integral coupling latch that provides audible and tactile feedback during assembly.The durable thermoplastic connector housings come complete with silicon rubber grommets and will withstand immersion under three feet of water once mated.

Specifications

ItemReceptacle housing
SeriesDTHD
ModelDTHD04-1-4P
Poles1 P
GenderFemale
Rated current100 A
Mounting typeCable mount
Termination methodCrimp
Width26.54 mm
Height29.72 mm
Depth52.53 mm

Materials

Housing PA
Terminal Tin plated phosphor bronze
