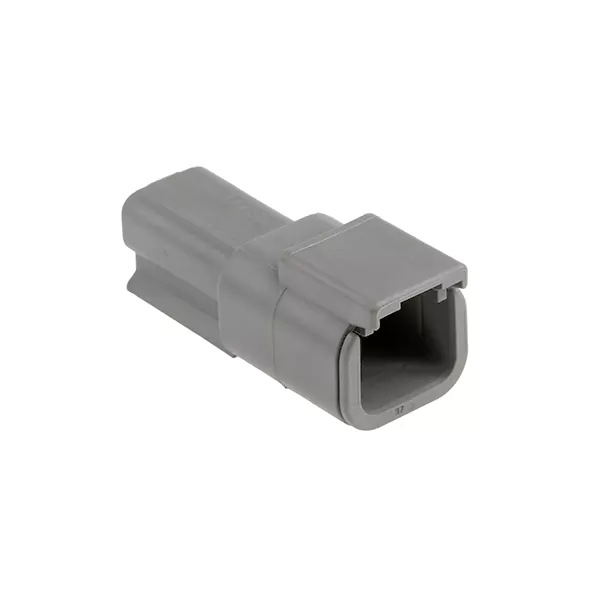

Deutsch DTM Automotive Connector DTM04-2P (2 Way, Socket, Crimp Termination)
• Tactile and audible connector mating
• Rugged thermoplastic connector housing
• Hand insertable/removable contacts
• Operating temperature range: -55 ~ +125 °C
• Dielecric withstand voltage 1500 V ac
• Nickel plated copper alloy contacts (available separately)
• Positive contact retention
• Suitable for Size 20 Contacts
Description
DTM Series Connectors
Deutsch DTM Series connectors are ideal for transport and other harsh environment signal connector applications. They are oftne used in engine compartments and transmission tunnels. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector.
Specifications
| Item | Receptacle housing |
| Series | DTM |
| Model | DTM04-2P |
| Poles | 2 P |
| Gender | Female |
| Rated current | 100 A |
| Mounting type | Cable mount |
| Termination method | Crimp |
| Width | 26.54 mm |
| Height | 29.72 mm |
| Depth | 52.53 mm |
Materials
| Housing | PA |
| Terminal | Tin plated phosphor bronze |
