Fasten Terminal

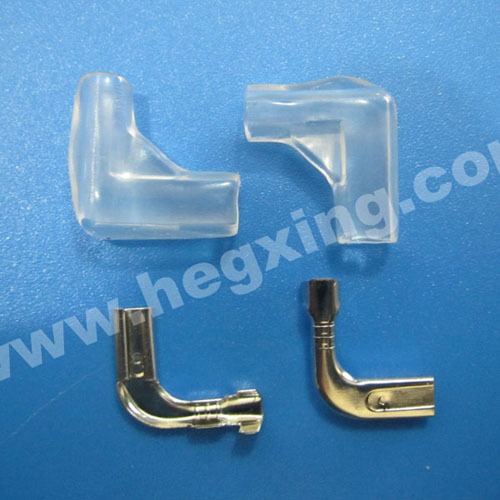

Flag Terminal 2.8Q-0.8

Flag Terminal 2.8Q-0.8

Specifications

ItemFasten Terminal
Model2.8Q-0.8
Rated voltage300 V AC/DC
Rated current15.0 A
Applicable wireAWG #24 ~ #12
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

Drawings

2.8Q-0.8
