Pressure Welding Bar Connector (PHSD) 2.0mm Pitch

  • Economical replacement for YEONHO PHSD Connector, similar specification & quality but low price.

Specifications

ItemPressure Welding Bar Connector
SeriesWire-to-Board Connector
ModelPHSD
Poles4 ~ 60 P
Rated voltage250 V AC/DC
Rated current2.0 A
Applicable wireAWG #28 ~ #24
Applicable PC board thickness1.2 ~ 1.6 mm
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

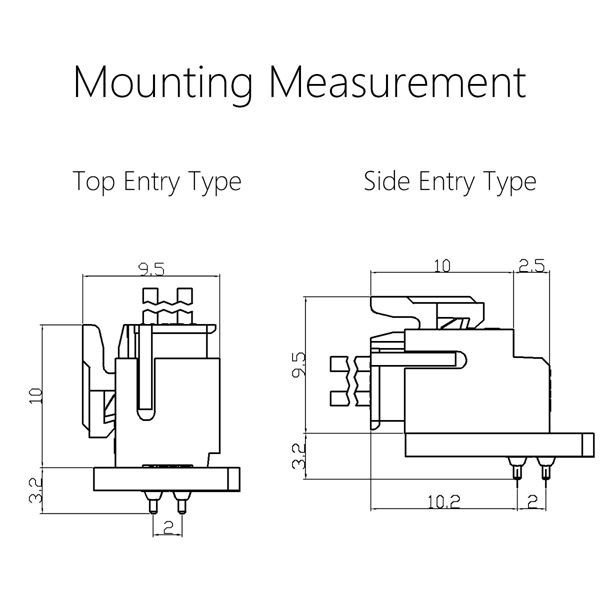

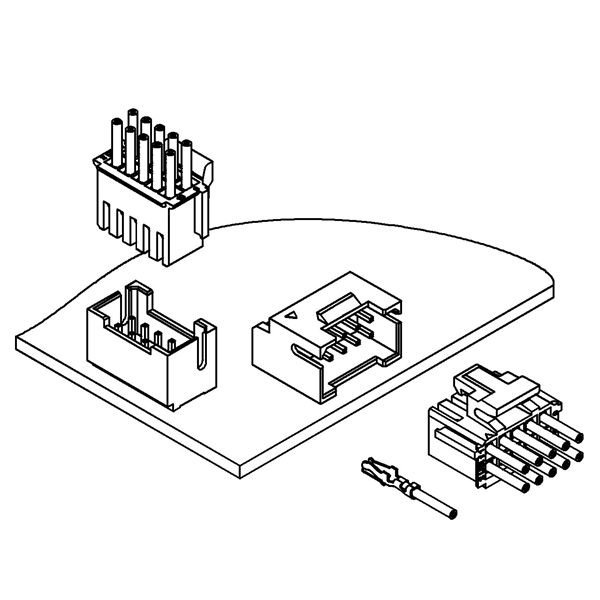

Drawings

PHSD
