Micro Switch MAC-1210-1 Dustproof Type

Hegxing supplies various of Micro Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Micro Switches have advantages of economy, durability, easy mounting.

Description

Specifications

Rating: 3A / 8A 250VAC T125
Contact resistance: ≤ 100 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric intensity: In working: 500 VAC / 5A / 5S
Standard: 1500 VAC / 5mA / 5S
Operating force: 60 ± 30g.f
Position: FP = 15.4 ± 0.8 mm
OP = 13.0 ± 0.8 mm
TTP = 11.0 ± 0.4 mm
MD ≤ 0.6 mm
IP grade: IP60
Color: Black
Circuit diagram:

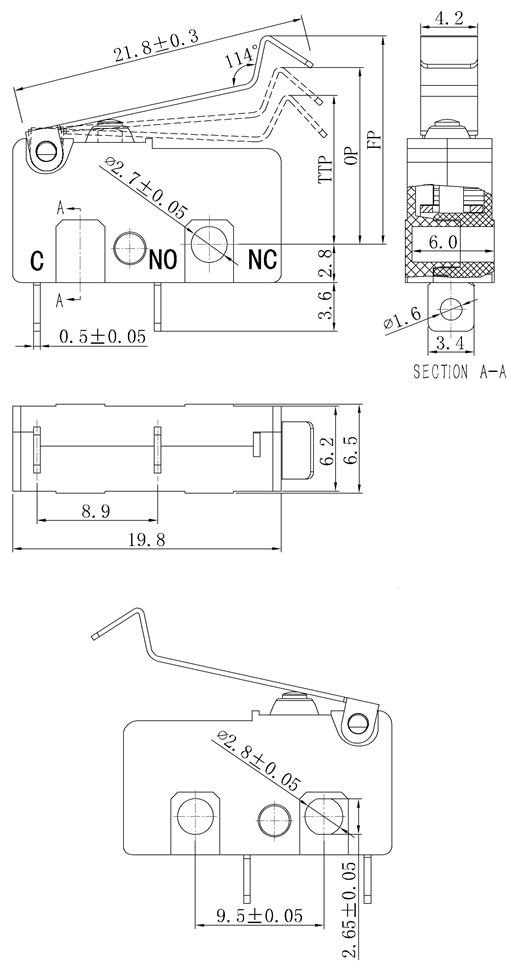

Drawings
