Plastic Push Button Switch

Home » Products » Plastic Push Button Switch PBS-03C

Plastic Push Button Switch PBS-03C

Hegxing supplies various of Plastic Push Button Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Plastic Push Button Switches have advantages of economy, durability, easy mounting.



Rating: 15A 125VAC / 7.5A 250VAC T125
Contact resistance: ≤ 50 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric intensity: ≥ 1500 VAC / 5S
Life: ≥ 10,000 cycles
Operating type: Latch or Momentary
Button type:
Circuit diagram:

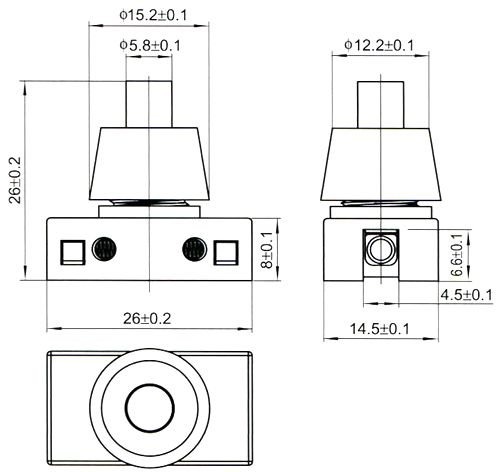

Terminal diagrams:
