Pressure Welding Bar Connector

Home/Electronic Connector/6.35mm Pitch/Pressure Welding Bar Connector (63080) 6.35mm Pitch

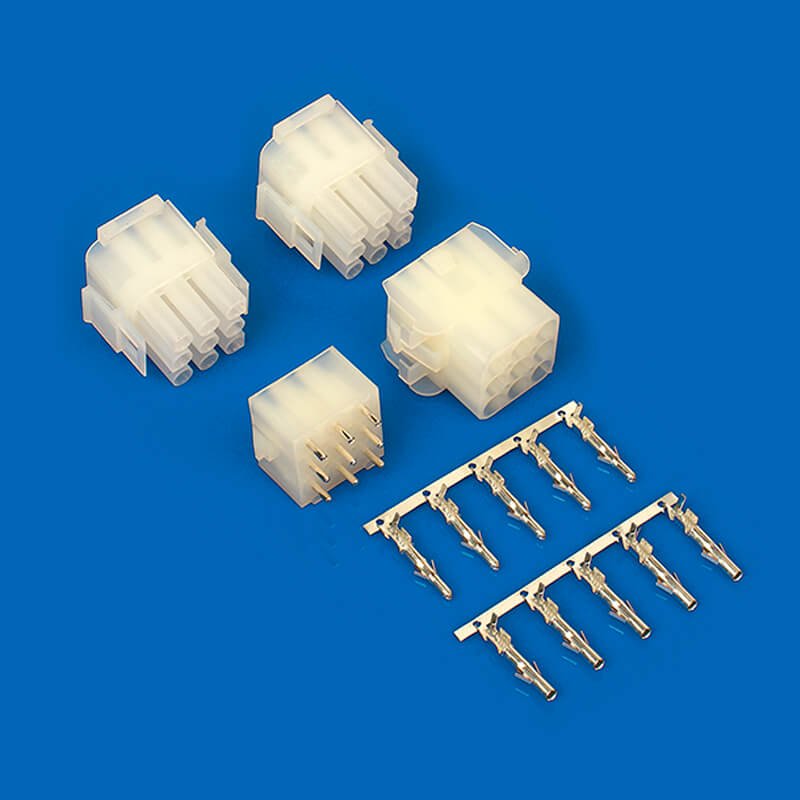

Pressure Welding Bar Connector (63080) 6.35mm Pitch

  • Economical replacement for Molex MLX Power Connector, similar specification & quality but low price.

Specifications

ItemPressure Welding Bar Connector
SeriesWire-to-Wire Connector
Model63080
Poles2 ~ 6 / 2 x 2 / 2 x 3 ~ 5 x 3 P
Rated voltage300 V AC/DC
Rated current10.0 A
Applicable wireAWG #24 ~ #20
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

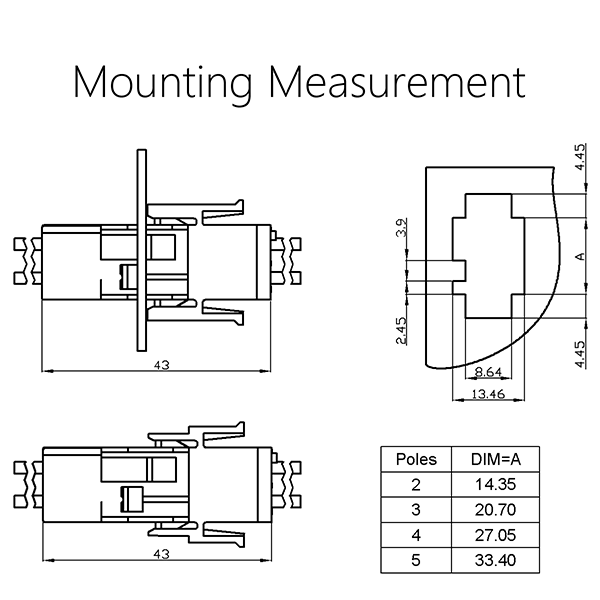

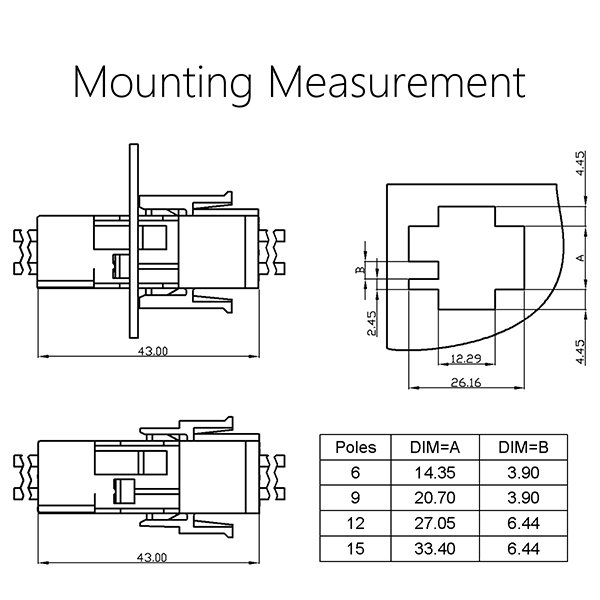

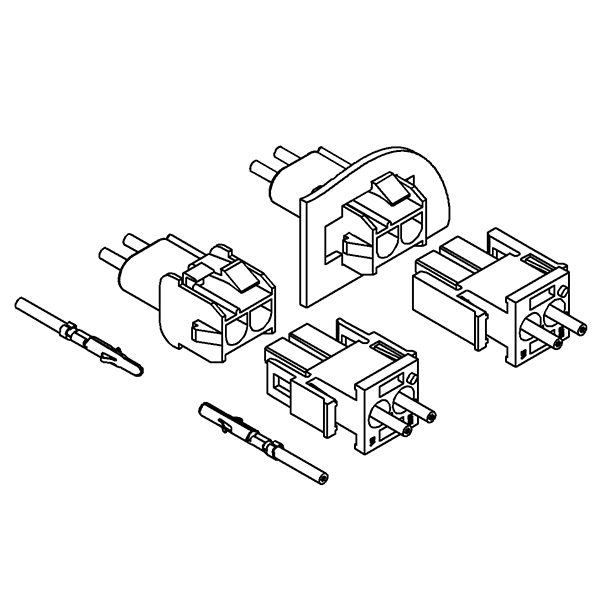

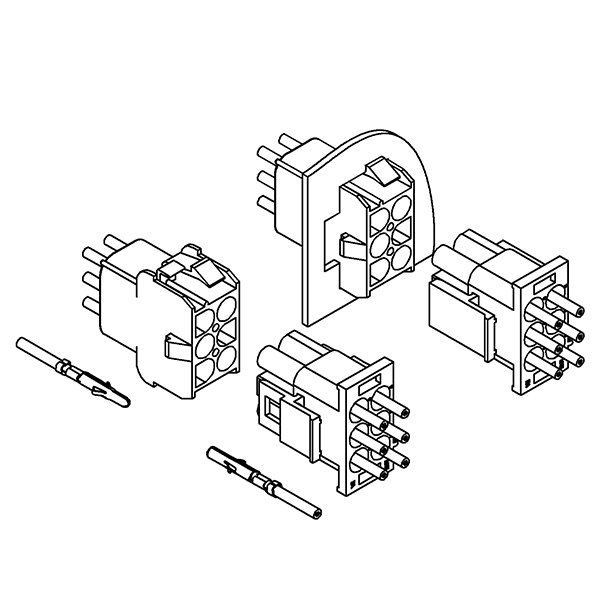

Drawings

63080
