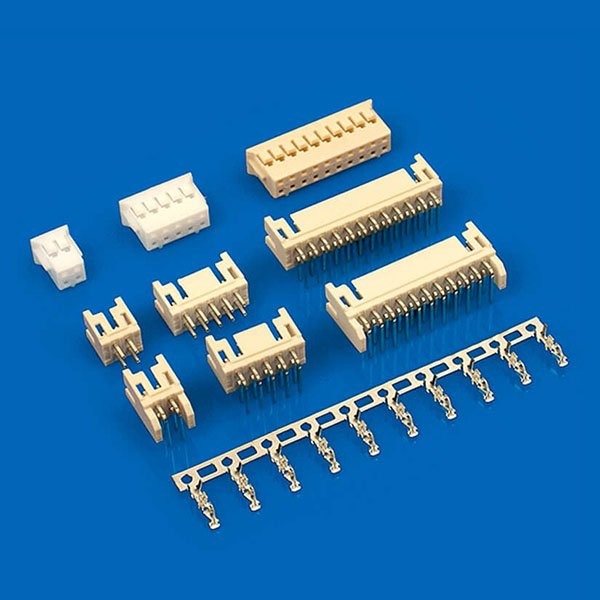

Pressure Welding Bar Connector (CY-X201 / 35108) 5.0mm Pitch

Economical alternative for Molex CY-X201 / 35108 Connector, similar specification & quality but low price.

Description

Product Profile

Series CY-X201 / 35108 Pressure Welding Bar Connector
Category Wire-to-Board type Pressure Welding Bar Connector
Type Crimp style, Compact type, Disconnectable type
PC board mounting direction Top entry

Specification

Pitch 5.0 mm
Poles 1, 2, 3 P
Current rating 5 A AC/DC
Voltage rating 250 V AC/DC
Temperature range -25 ~ 85 ℃
Contact resistance ≤ 10 mΩ
Insulation resistance ≥ 1000 MΩ
Withstand voltage 1000 V AC/minute
Applicable wire AWG24# ~ 18#
Applicable PC board thickness 1.6 mm
