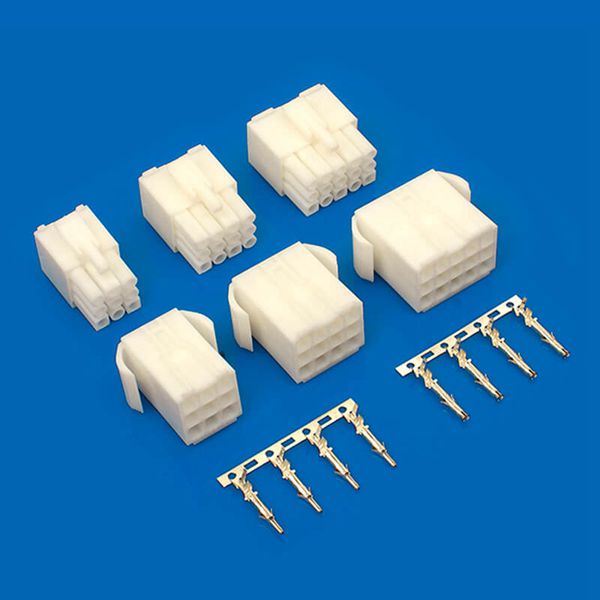

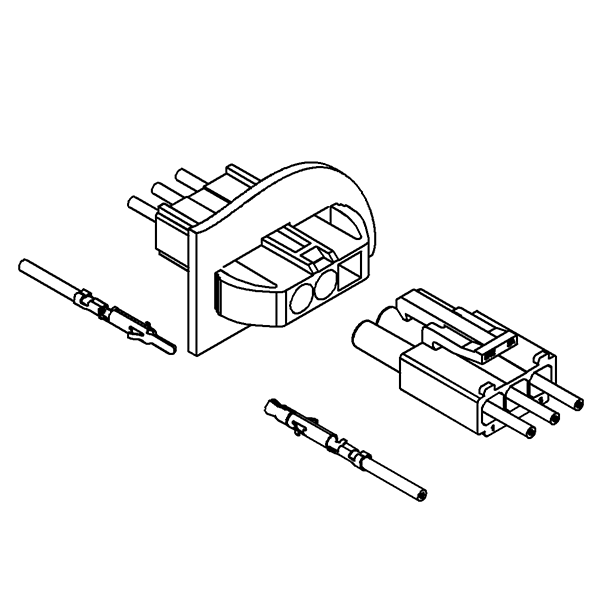

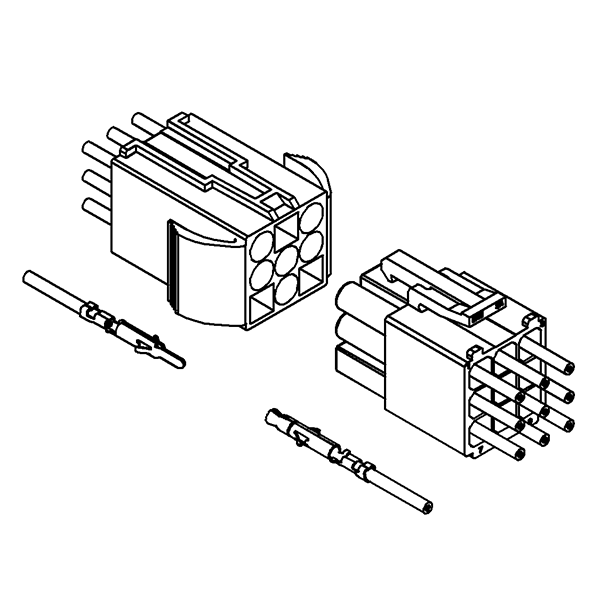

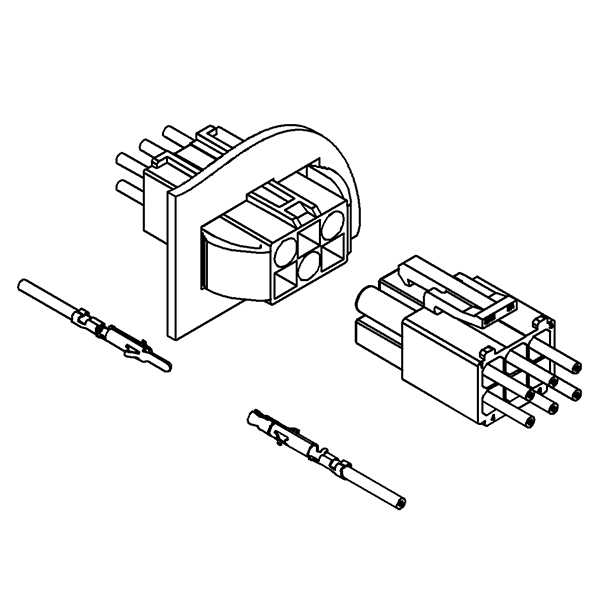

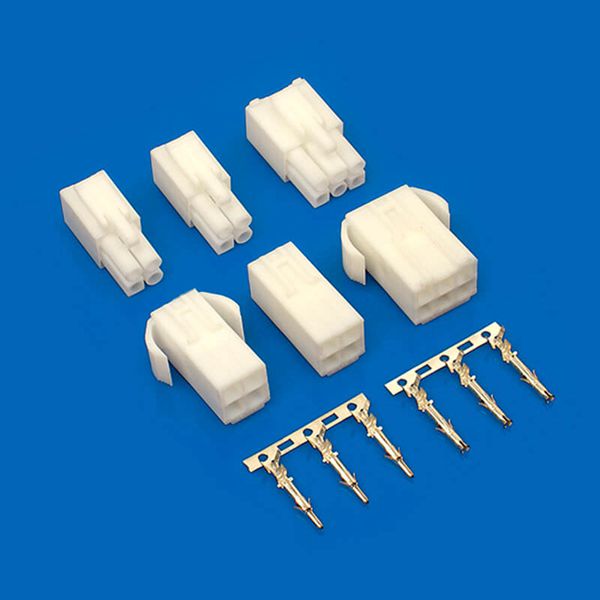

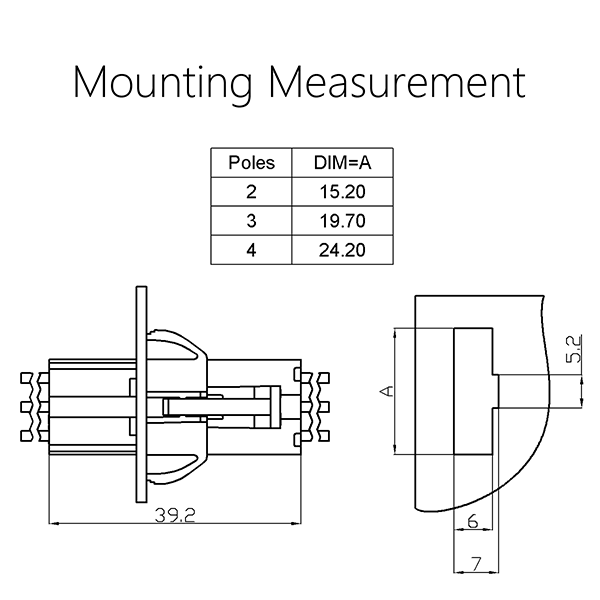

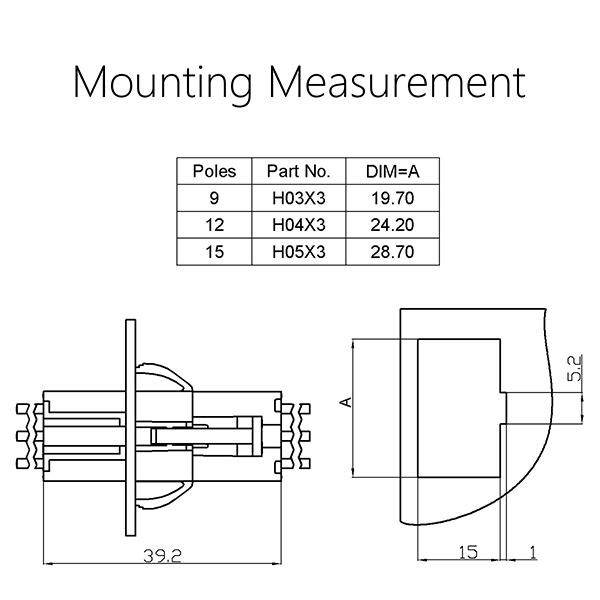

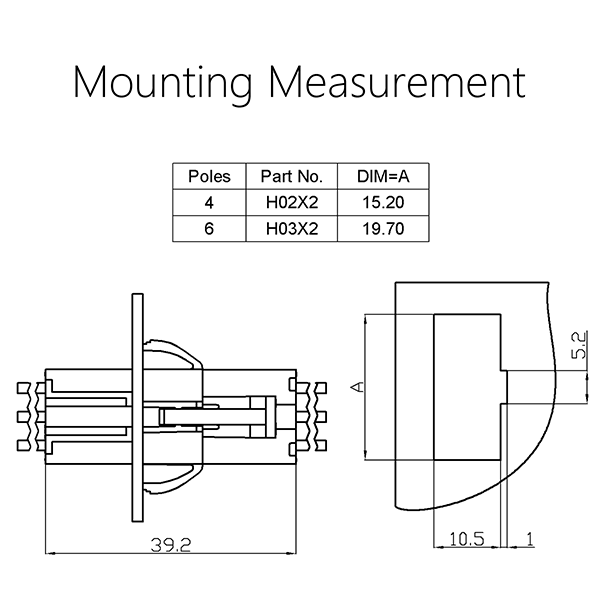

Pressure Welding Bar Connector (EL) 4.5mm Pitch
- Economical replacement for JST EL Connector, similar specification & quality but low price.
- The contacts for the compact EL connector can be easily inserted into the connector housings.
- The plug housing and the receptacle housing can be smoothly mated even if they are mechanically distored.
Specifications
| Item | Pressure Welding Bar Connector |
| Series | Wire-to-Wire Connector |
| Model | EL |
| Poles | 2 ~ 4 / 2 x 2 , 2 x 3 / 3 x 3 ~ 3 x 5 P |
| Rated voltage | 300 V AC/DC |
| Rated current | 10.0 A |
| Applicable wire | AWG #24 ~ #20 |
| Contact resistance | ≤ 20 mΩ |
| Insulation resistance | ≥ 1000 MΩ |
| Withstand voltage | 1000 V AC/min |
| Temperature range | -25 ℃ ~ 85 ℃ |
Materials
| Housing | Nylon (PA66) UL94V-2(0) |
| Terminal | Tin plated phosphor bronze |
| Wafer | Nylon (PA66) UL94V-2(0) |
| Retainer | Nylon (PA66) UL94V-2(0) |
