Pressure Welding Bar Connector WW4503 & WW4504 (Small EL) 4.5mm Pitch

  • Economical replacement for KET Small EL Connector, similar specification & quality but low price.

Description

Product Profile

Series: WW4503 & WW4504 (EL) Pressure Welding Bar Connector
Category: Wire-to-Wire type Pressure Welding Bar Connector
Type: Compact type

Model Explanation

WB 1001 H 02
WB: Wire-to-Board Connector
WW: Wire-to-Wire Connector
BI: Board-in Connector
Series number
H: Housing
T: Terminal
PT: Top Entry type Pressure Welding Bar Wafer
PS: Side Entry type Pressure Welding Bar Wafer
ST: Top Entry type SMT Wafer
SS: Side Entry type SMT Wafer
Poles

Specification

Pitch: 4.5 mm
Poles: 2  ~ 4 P
Current rating: 10 A AC/DC
Voltage rating: 300 V AC/DC
Temperature range: -25 ~ 85 ℃
Contact resistance: ≤ 20 mΩ
Insulation resistance: ≥ 1000 MΩ
Withstand voltage: 1500 V AC/minute
Applicable wire: AWG #26 ~ #18
Applicable PC board thickness: 1.6 ~ 2.0 mm

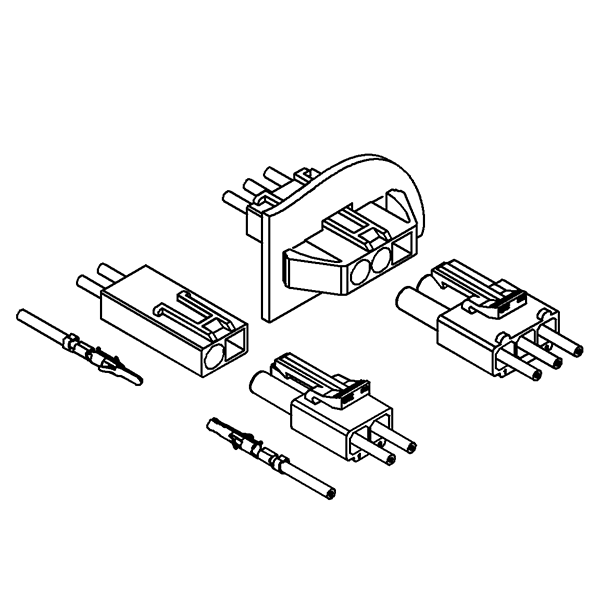

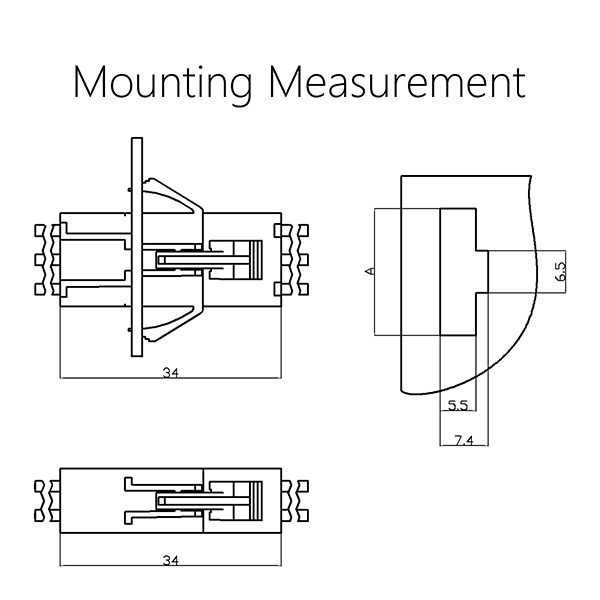

Drawings
