Pressure Welding Bar Connector (ZHR) 1.5mm Pitch
- Economical replacement for JST ZHR Connector, similar specification & quality but low price.

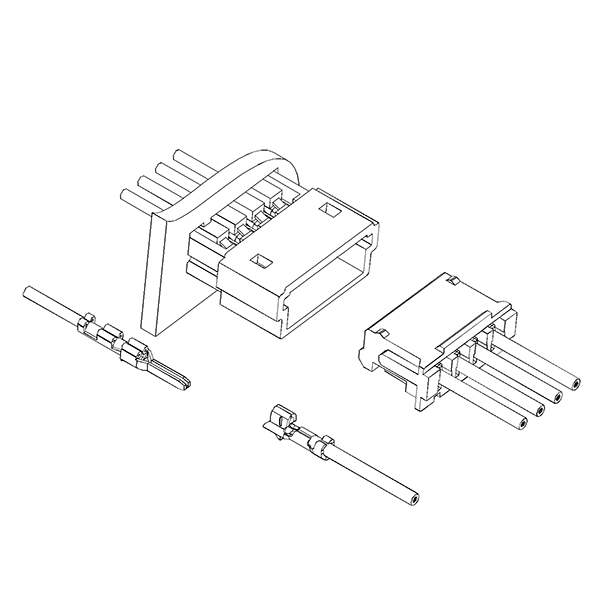

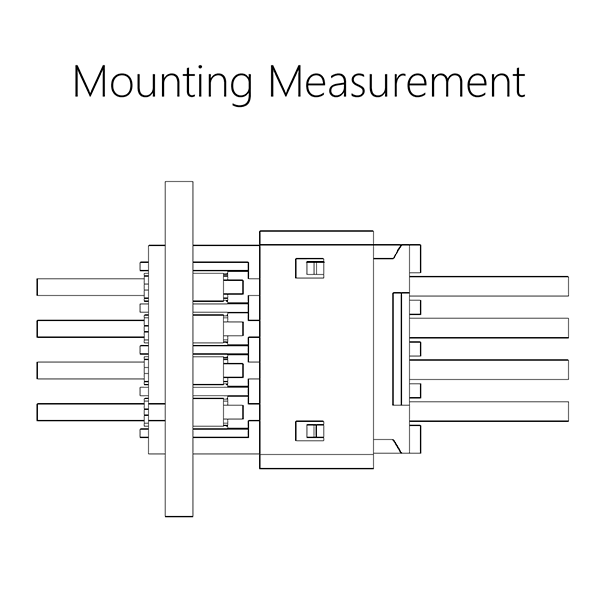

- WB1501 (ZH) displacement connector receptacles can be accommodated by the WW1501 (ZM) connector.
- The fully shrouded header provides protection from rocking the connector halves back and forth during mating and unmating.
Specifications
| Item | Pressure Welding Bar Connector |
| Series | Wire-to-Wire |
| Model | ZHR |
| Poles | 1.5 P |
| Rated voltage | 50 V AC/DC |
| Rated current | 1.0 A |
| Applicable wire | AWG #32 ~ #26 |
| Contact resistance | ≤ 20 mΩ |
| Insulation resistance | ≥ 1000 MΩ |
| Withstand voltage | 1000 V AC/min |
| Temperature range | -25 ℃ ~ 85 ℃ |
Materials
| Housing | Nylon (PA66) UL94V-2(0) |
| Terminal | Tin plated phosphor bronze |
| Wafer | Nylon (PA66) UL94V-2(0) |
| Retainer | Nylon (PA66) UL94V-2(0) |
