Rocker Switch KCD4-04

Hegxing supplies various of Rocker Switch, which is wildly apply to home appliance, machine, equipment, vehicle, etc.

Our Rocker Switches have advantages of economy, durability, easy mounting.

Description

Specifications

Rating: 15A 125VAC / 16(8)A 250VAC T85
Contact resistance: ≤ 50 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric intensity: ≥ 1500 VAC / 5S
Life: ≥ 10,000 cycles

Diagrams

Series No. Circuit diagrams Terminal diagrams
KCD4-04-101
KCD4-04-101/N

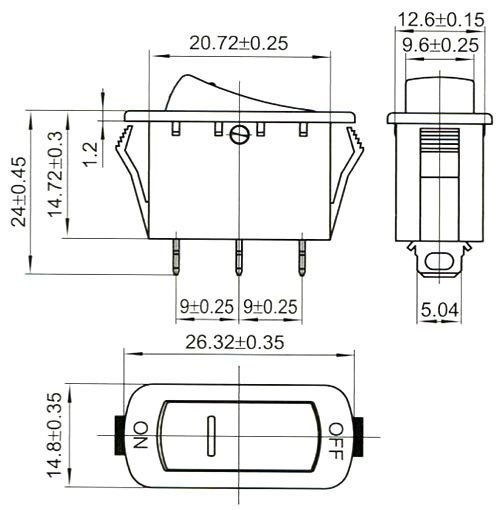

Drawings
