Rotary Switch KFZ-01 (LW2)

Hegxing supplies various of Rotary Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Rotary Switches have advantages of economy, durability, easy mounting.

Get A Quote

Description

Specifications

Rating:6A 125 / 250VAC T125
Contact resistance:≤ 50 mΩ
Insulation resistance:≥ 100 MΩ
Dielectric intensity:≥ 500 VAC / 5 S
Life:10,000 cycles
Angle of gear:18º / 22.5º / 36º / 45º
Position of initial gear (α):





Function of circuit:L-OFF, 1
L-OFF, 1, 2
L-OFF, 1, 2
L-1, 2
L-1, 2, 3
L-1-OFF-3
Dimensions of pole:

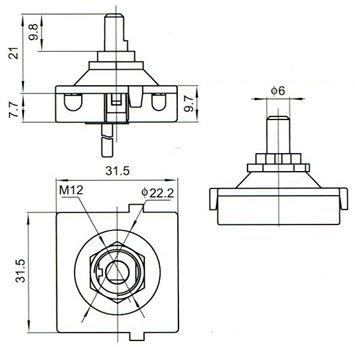

Drawings
