Rotary Switch KFZ-08

Hegxing supplies various of Rotary Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Rotary Switches have advantages of economy, durability, easy mounting.

Get A Quote

Description

Specifications

Rating:16(4)A 125 / 250VAC T125
Contact resistance:≤ 50 mΩ
Insulation resistance:≥ 100 MΩ
Dielectric intensity:≥ 1,500 VAC / 5 S
Life:10,000 cycles
Angle of gear:30º / 90º
Position of initial gear (α):



Dimensions of pole:
Terminal diagrams:

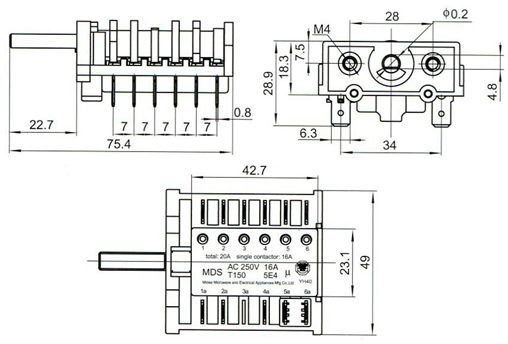

Drawings

Diagram of Switching On & Off

InputOutputGear position
A1ON
2ON
B3
4
InputOutputGear position
A1ONON
2ON
B3
4ON
InputOutputGear position
A1ON
2ONON
B3ONONON
4ONONON
InputOutputGear position
A1ON
2ON
B3ON
InputOutputGear position
A1ONON
2ONON
B3
4
InputOutputGear position
A1ONON
2ONONONON
B3
4ONON
