Hegxing supplies various of Rotary Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.
Our Rotary Switches have advantages of economy, durability, easy mounting.
Description
Specifications
| Rating: | 6A 125 / 250VAC T125 |
| Contact resistance: | ≤ 50 mΩ |
| Insulation resistance: | ≥ 100 MΩ |
| Dielectric intensity: | ≥ 500 VAC / 5 S |
| Life: | 10,000 cycles |
| Angle of gear: | 18º / 22.5º / 36º / 45º |
| Position of initial gear (α): |
|
| Function of circuit: | L-OFF, 1 L-OFF, 1, 2 L-OFF, 1, 2 L-1, 2 L-1, 2, 3 L-1-OFF-3 |
| Dimensions of pole: |
|
Diagram of Switching On & Off
| Input | Gear position | Output | ||
| 1 | 2 | 3 | ||
| L |  | |||
 | ON | |||
 | ON | |||
 | ON | |||

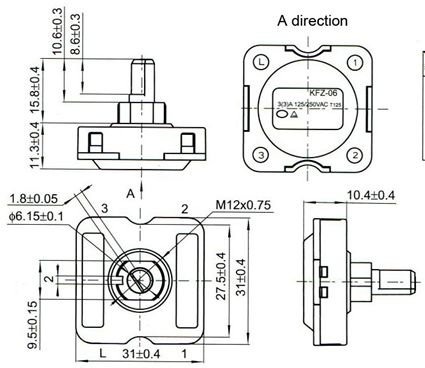

Drawings
