Rotary Switch KFZ-03-01

Hegxing supplies various of Rotary Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Rotary Switches have advantages of economy, durability, easy mounting.

Category: Tag:

Description

Specifications

Rating: 6A 125 / 250VAC T125
Contact resistance: ≤ 50 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric intensity: ≥ 500 VAC / 5 S
Life: 10,000 cycles
Angle of gear: 18º / 22.5º / 36º / 45º
Position of initial gear (α):





Function of circuit: L-OFF, 1
L-OFF, 1, 2
L-OFF, 1, 2
L-1, 2
L-1, 2, 3
L-1-OFF-3
Dimensions of pole:

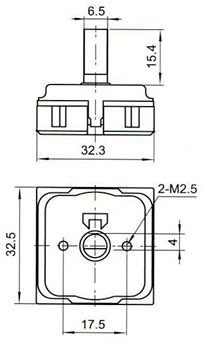

Drawings
