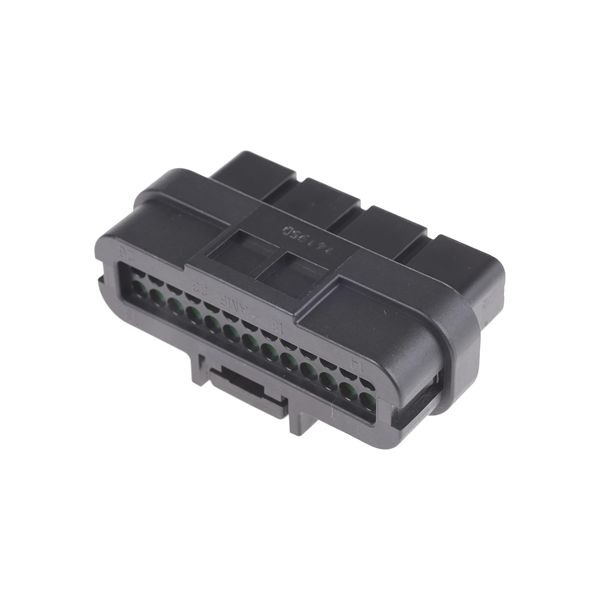

TE AMP Superseal 1.0 Automotive Connector 1473712-2 (26 Pin, 2 Row, Male)

• Sturdy and reliable contacts
• Double contact spring design
• Secondary lock ensures correct and complete insertion of the contact
• Silicon rubber seals

Product Details

AMP Superseal 1.0 plug housing assemblies for 1.0 mm receptacle contacts with polarization key, thermoplastic GF housings and upper locking. The secondary locking mechanisms of these Superseal automotive plug connectors facilitate contact insertion into the housing and prevent the contacts from backing out during mating. If the contacts cannot be correctly inserted into the plug housing assembly the secondary lock cannot be closed.

AMP Superseal Connectors, 1.0 mm and 1.5 mm System

Developed to meet the constantly increasing needs and requirements for safety and reliability in the electrical connection field, these connectors fulfill all the requirements prescribed by the various automotive and industrial standards. Typical applications include various automotive sensor devices, oil pressure senders, water temperature monitoring or any application requiring waterproof protection to IP67.

Specifications

ItemPlug housing
SeriesAMP Superseal 1.0
Model1473712-2
Poles26 P
GenderMale
Mounting typeCable mount
Termination methodCrimp
Width38.2 mm
Height34.5 mm
Depth32.1 mm

Materials

Housing PA
Terminal Tin plated phosphor bronze
