Home/Auotmotive Connector/Delphi/Metri-Pack/Delphi Metri-Pack 150 Pull-to-Seat Crimp Receptacle Terminal 12124076 (0.35 ~ 0.5 mm²)

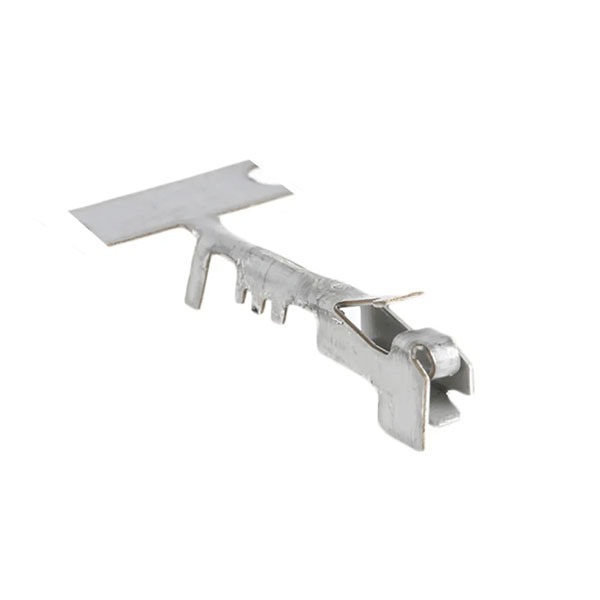

Delphi Metri-Pack 150 Pull-to-Seat Crimp Receptacle Terminal 12124076 (0.35 ~ 0.5 mm²)

Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

Description

Metri-Pack 150 Pull-to-Seat female crimp terminals for use with Metri-Pack 150 Pull-to-Seat automotive device connectors. These Metri-Pack 150.2 Pull-to-Seat crimp terminals are made from silicon bronze with a tin plating.

Specifications

ItemReceptacle terminal
SeriesMetri-Pack 150
Model12124076
GenderFemale
Applicable wire0.35 ~ 0.5 mm²
Temperature range-55℃ ~ 125℃

Materials

Housing PA
Terminal Tin plated phosphor bronze
