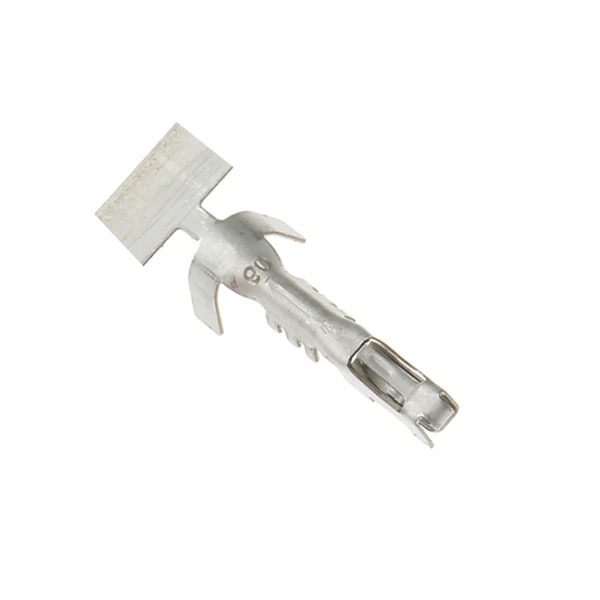

Delphi Metri-Pack 150 Sealed Crimp Receptacle Terminal 12048074 (0.5 ~ 1.0 mm²)

Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

Description

A range of Metri-Pack 150 sealed crimp terminals for the Metri-Pack 150 range of sealed automotive connectors.

Specifications

ItemReceptacle terminal
SeriesMetri-Pack 150
Model12048074
GenderFemale
Applicable wire0.5 ~ 1.0 mm²
Temperature range-55℃ ~ 125℃

Materials

Housing PA
Terminal Tin plated phosphor bronze
