Home/Auotmotive Connector/Delphi/Metri-Pack/Delphi Metri-Pack 800 Sealed Crimp Receptacle Terminal 12065916 (2.0 ~ 3.0 mm²)

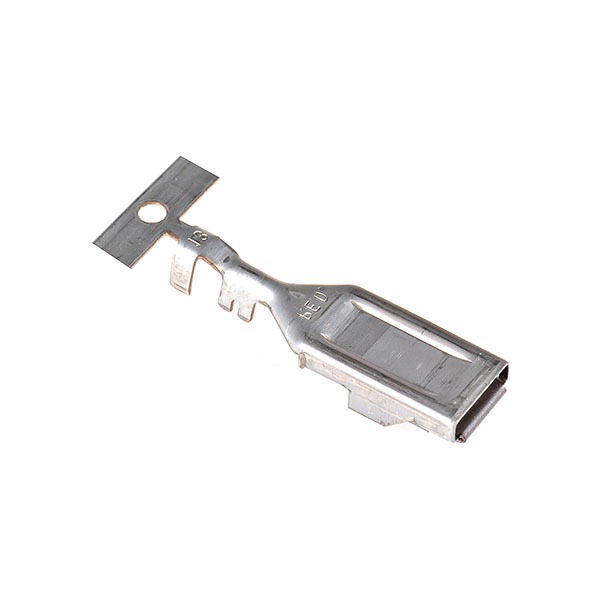

Delphi Metri-Pack 800 Sealed Crimp Receptacle Terminal 12065916 (2.0 ~ 3.0 mm²)

A range of unsealed female terminals designed for use with the Delphi Metri-Pack 800 series of automotive connectors.The terminals are made from tinned brass with tin plating.

Description

A range of Metri-Pack 800 sealed crimp terminals for the Metri-Pack 800 range of sealed automotive connectors.

Specifications

ItemReceptacle terminal
SeriesMetri-Pack 800
Model12065916
GenderFemale
Applicable wire2.0 ~ 3.0 mm²
Temperature range-55℃ ~ 125℃

Materials

Housing PA
Terminal Tin plated phosphor bronze
