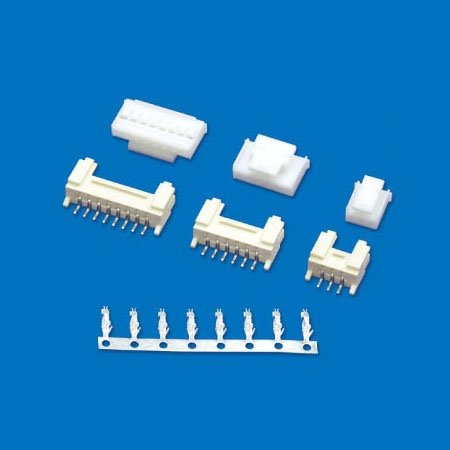

SMT Connector (HY) 2.0mm Pitch

  • Economical replacement for JST HY Connector, similar specification & quality but low price.
  • It is designed to meet the demand for the high-density connection of internal wires to PC boards.
  • It is compact, highly reliable and low in cost.

Specifications

ItemSMT Connector
SeriesWire-to-Board Connector
ModelHY
Poles2 ~ 15 P
Rated voltage250 V AC/DC
Rated current2.0 A
Applicable wireAWG #28 ~ #22
Applicable PC board thickness1.2 ~ 1.6 mm
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

Drawings

HY
