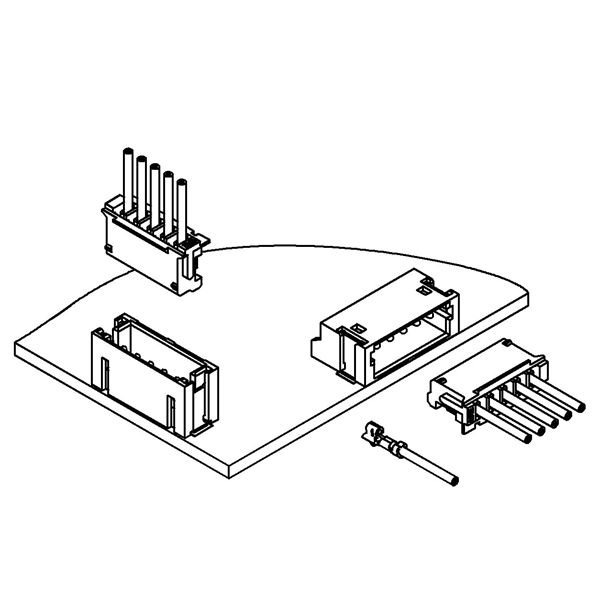

SMT Connector (ZH) 1.5mm Pitch
- Economical replacement for JST ZH Connector, similar specification & quality but low price.
- Housing lances.
- The dimple at the center of the contact ensures positive contact and low contact resistance at all times.
- Fully shrouded header.
- The same shrouded header can be used for the ZR insulation displacement connector.
Specifications
| Item | SMT Connector |
| Series | Wire-to-Board |
| Model | ZH |
| Poles | 2 ~ 16 P |
| Rated voltage | 50 V AC/DC |
| Rated current | 1.0 A |
| Applicable wire | AWG #32 ~ #26 |
| Applicable PC board thickness | 1.2 ~ 1.6 mm |
| Contact resistance | ≤ 20 mΩ |
| Insulation resistance | ≥ 1000 MΩ |
| Withstand voltage | 1000 V AC/min |
| Temperature range | -25 ℃ ~ 85 ℃ |
Materials
| Housing | Nylon (PA66) UL94V-2(0) |
| Terminal | Tin plated phosphor bronze |
| Wafer | Nylon (PA66) UL94V-2(0) |
| Retainer | Nylon (PA66) UL94V-2(0) |
